Modules 8 and 10 Network Communication Exam Answers and Solutions

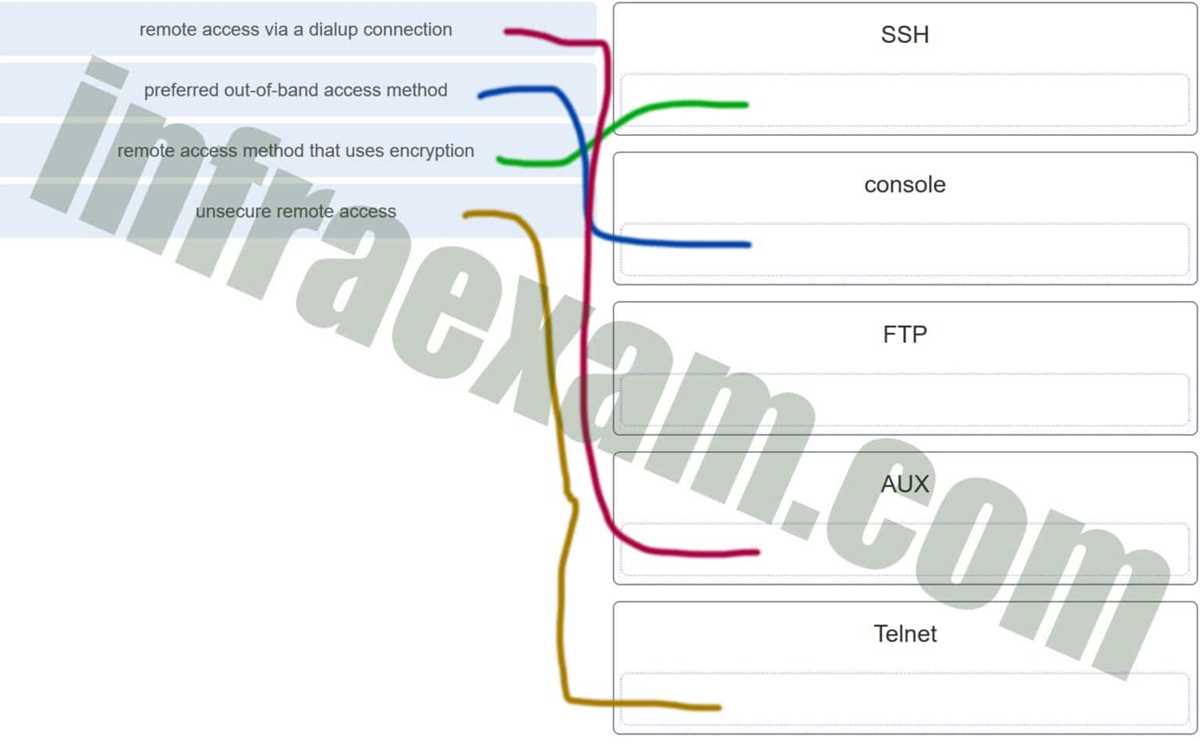

To solve the tasks related to inter-device communication, focus on mastering the configuration of routing and addressing schemes. For IP addressing, ensure you understand subnetting well, as it forms the foundation for network segmentation and efficient traffic flow. Practice calculating subnets and using CIDR notation, which frequently appears in assessments.

When it comes to the configuration of switches and routers, be familiar with the process of assigning IP addresses, setting up routing tables, and verifying network connectivity with commands like ping and traceroute. These commands are commonly tested and provide direct feedback for troubleshooting network issues.

Understanding and implementing routing protocols such as RIP, OSPF, and EIGRP is crucial. They define how data travels across devices and are key in many questions. Don’t skip over practice problems that require configuring these protocols on routers, as hands-on experience will prepare you for complex scenarios.

Another significant area involves Network Address Translation (NAT). Study how NAT operates to translate private IP addresses to public ones, and how this impacts network security and connectivity. Familiarity with NAT types, such as static and dynamic, will help in answering more nuanced questions.

Finally, testing network configurations is a crucial step. Use packet sniffing tools and simulators to observe traffic flow. Practicing with scenarios where you need to troubleshoot and configure devices will make you more comfortable under exam conditions and ensure you don’t miss critical configurations.

Modules 8 and 10 Network Communication Exam Solutions

To solve questions on inter-device interaction and routing configurations, begin by mastering the use of IP addressing schemes. Focus on calculating subnets, CIDR notation, and classful address ranges. You will need to quickly identify subnet masks and network portions in a given problem. Practice subnetting to ensure you can easily break down IP address blocks into usable subnets.

For routing configurations, understand the differences between static and dynamic routing. Static routes are manually configured and require precise entries in routing tables. For dynamic routing, familiarize yourself with protocols like RIP, OSPF, and EIGRP. Configuring these in real-world scenarios will help you answer questions related to route propagation and network topology.

Another key area involves Network Address Translation (NAT). Review how NAT translates private IP addresses to public ones and vice versa. Focus on the different types of NAT, such as static, dynamic, and PAT (Port Address Translation). You will be tested on scenarios where NAT plays a role in network connectivity, especially when devices behind a router or firewall need access to the internet.

Understanding how to troubleshoot communication issues is also important. Practice diagnosing problems using tools like ping, traceroute, and telnet. Being able to pinpoint where a breakdown in communication is occurring can save valuable time during assessments. Identify common issues like incorrect subnet masks or missing static routes that could lead to connectivity failures.

Finally, focus on implementing security protocols. For instance, understand how VPNs (Virtual Private Networks) can be set up to securely connect devices over an insecure channel. Know how to configure basic encryption methods and test them to ensure the privacy of transmitted data. A strong understanding of these topics will allow you to approach questions about secure device communication with confidence.

Understanding the OSI Model for Network Communication

Focus on memorizing the seven layers of the OSI model. Each layer has a specific role in data transmission. Starting from the bottom, the Physical Layer handles the physical connection between devices. Study common protocols like Ethernet that operate at this layer. Make sure you can identify which hardware devices (e.g., cables, switches) interact with this layer.

The Data Link Layer ensures that data is transferred without errors. Familiarize yourself with MAC addresses and the operation of switches. Be prepared to distinguish between different types of frames, such as Ethernet frames, and understand how error detection methods like CRC work.

At the Network Layer, IP addresses are used to route data. Know how routing protocols, such as RIP and OSPF, function and how routers use IP addresses to determine the path of data. Practice configuring IP addresses, subnet masks, and routing tables for different scenarios.

The Transport Layer is responsible for end-to-end communication and flow control. Study TCP and UDP protocols, and understand the differences between them. Know how ports and socket numbers work to establish communication between devices. Make sure you can troubleshoot common issues like connection timeouts or port blocking.

At the Session Layer, the focus is on establishing, managing, and terminating communication sessions. Learn how protocols like SMB and NFS manage communication between systems. Understand how session management is important in maintaining persistent connections between two devices.

The Presentation Layer is where data is formatted for use by the application. Study how data is encrypted, compressed, and converted from one format to another. Understanding protocols like SSL/TLS for encryption will be helpful when dealing with secure data transmission.

Finally, at the Application Layer, protocols such as HTTP, FTP, and DNS operate. Be familiar with how applications use these protocols to send and receive data. Knowing the difference between a client and a server, as well as how HTTP requests and responses work, will be critical for answering related questions.

How to Configure IP Addresses for Network Communication

Begin by assigning IP addresses that follow the correct subnetting scheme. For local communication, use private IP addresses from the following ranges:

To configure an IP address, determine the network’s required size and select a suitable subnet. Use CIDR (Classless Inter-Domain Routing) notation to define the subnet mask. For example, a subnet with 256 addresses would use a /24 mask (255.255.255.0).

Once the subnet is chosen, manually assign IP addresses to devices in your network, making sure they fall within the subnet range. Use the ipconfig or ifconfig command to verify the address settings on each device.

For devices that require dynamic IP addressing, configure a DHCP server to automatically assign IP addresses to clients. Ensure the DHCP server is properly configured with a scope that corresponds to your subnet range.

Verify the configuration by testing connectivity between devices using the ping command. This helps ensure that the devices are correctly assigned and reachable. Troubleshoot any issues by checking the subnet mask and default gateway settings on each device.

Common Protocols in Network Communication for Modules 8 and 10

Familiarize yourself with key protocols such as TCP/IP and UDP. TCP provides reliable, connection-oriented communication, ensuring that data is received in order and without errors. It is critical for tasks that require data integrity, such as file transfers or email. On the other hand, UDP is used for faster, connectionless communication, making it ideal for streaming applications like video or voice, where speed is prioritized over reliability.

Understand the role of the IP protocol in addressing and routing data across devices. IPv4, with its 32-bit addressing scheme, is still widely used, but IPv6, with its 128-bit addresses, is becoming more common due to the exhaustion of IPv4 addresses. Be prepared to differentiate between the two and understand their header structures.

HTTP and HTTPS protocols are essential for web communication. HTTP (HyperText Transfer Protocol) is used for loading websites, while HTTPS adds a layer of security using SSL/TLS encryption. Ensure you understand how these protocols function at the application layer, how SSL/TLS encryption protects data, and the significance of secure communication over public networks.

The FTP protocol is commonly used for transferring files between devices. FTP operates on the application layer, using TCP for reliable transmission. Make sure you know how it works in both active and passive modes, and how it differs from more modern transfer methods like SFTP or FTPS, which offer secure alternatives for file transfer.

DNS (Domain Name System) resolves domain names to IP addresses, facilitating easy navigation on the internet. Review how DNS works and how queries are made to resolve a domain name, as well as the differences between recursive and iterative queries.

Lastly, the ARP (Address Resolution Protocol) is used to map an IP address to a MAC address within a local network. Study how ARP operates and the role it plays in network communication, especially in IPv4 addressing and routing processes.

Configuring Routers and Switches for Inter-network Communication

Start by configuring the router’s interfaces with the appropriate IP addresses. Ensure each interface is correctly assigned to its corresponding subnet. Use the interface command in the router’s configuration mode to set up these IP addresses.

For routers to route traffic between different subnets, enable routing protocols like RIP, OSPF, or EIGRP. These protocols help the router dynamically learn about the network topology. Make sure to specify the networks that the router will advertise using the network command in the routing configuration.

For static routing, define static routes by specifying the destination network and the next-hop IP address or exit interface. Use the ip route command followed by the destination network, subnet mask, and the next-hop address or interface.

Ensure that subnetting is properly configured on the router to ensure efficient IP address allocation across different segments. Divide your IP address space into smaller subnets, and make sure each subnet has its own unique network address. Assign the proper subnet mask for each subnet to define the valid range of addresses.

On switches, configure VLANs to logically separate different broadcast domains. Use the vlan command to create VLANs, and assign switch ports to the appropriate VLANs using the switchport access vlan command. This ensures that devices in different VLANs cannot communicate directly unless routing is configured on the router.

Configure inter-VLAN routing by using a router or layer 3 switch. On the router, create subinterfaces for each VLAN with unique IP addresses. This allows communication between VLANs. Use the encapsulation dot1Q command to enable 802.1Q tagging for VLAN identification on router subinterfaces.

Enable port security on switches to prevent unauthorized access. Configure maximum number of MAC addresses per port, and enable violation actions such as shutdown or restrict to secure the network.

Verify the configuration by using commands like show ip route on routers and show vlan brief on switches. Use ping and traceroute to ensure devices can communicate across different segments and VLANs.

Setting Up and Testing Subnetting in Exam Scenarios

To set up subnetting for a given network, first determine the required number of subnets and the number of hosts per subnet. Use the subnet mask to divide the IP address range into smaller, manageable subnets. For example, if the network uses a Class C IP address (e.g., 192.168.1.0/24), and you need to create four subnets, calculate the new subnet mask by borrowing bits from the host portion of the address.

For borrowing two bits (giving you four subnets), the new subnet mask would be 255.255.255.192, which corresponds to a /26 prefix. The network addresses for each subnet would then be:

• 192.168.1.0/26
• 192.168.1.64/26
• 192.168.1.128/26
• 192.168.1.192/26

Once the subnets are determined, calculate the valid host range for each subnet. For a /26 subnet, the valid IP range for hosts is from the first usable address to the last usable address. For example, the first subnet, 192.168.1.0/26, has a host range of 192.168.1.1 to 192.168.1.62.

To test the subnetting setup, assign IP addresses to devices within each subnet and use ping to verify connectivity. Ensure that devices within the same subnet can communicate with each other, and test cross-subnet communication by pinging devices in different subnets. If the devices can’t communicate across subnets, check for routing issues or incorrect subnet masks.

Another method to test the subnetting configuration is by using traceroute to verify the path taken by the data packets. This ensures that routers are correctly routing traffic between subnets.

If the test scenarios require you to find network addresses or calculate ranges quickly, practice using subnetting tools and manual calculations. Always double-check the network address, broadcast address, and the number of hosts available in each subnet to avoid mistakes during assessments.

Resolving Network Address Translation (NAT) Issues

To resolve NAT issues, start by confirming that the NAT configuration on the router or firewall is correct. Ensure the correct translation method is applied based on the network’s needs, such as static NAT, dynamic NAT, or PAT (Port Address Translation).

If devices behind the NAT are unable to reach external resources, verify that the NAT device has been assigned the appropriate public IP address. Check the NAT translation table to ensure it’s mapping internal private IPs to the public IP correctly. Use the command show ip nat translations on Cisco devices to check the current translation entries.

If clients cannot establish external connections but can connect to other internal devices, the issue could be with port forwarding. Ensure that the appropriate ports are opened and mapped to the internal device IPs. If you are using a firewall, confirm that the correct rules are in place to allow traffic from the private to the public network.

For inbound connections, check the static NAT configuration to ensure that requests to the public IP are correctly forwarded to the internal server. In cases where multiple devices use the same public IP address, ensure the correct port forwarding configuration is in place to avoid conflicts.

If issues persist, clear the NAT table to reset the translation and eliminate any stale entries that may be causing conflicts. On Cisco routers, use the command clear ip nat translation * to reset all translations.

Lastly, for PAT-related issues, ensure that the number of available ports on the public IP isn’t exceeded. If too many devices attempt to use the same port, they may fail to establish connections. You can troubleshoot this by checking the number of used ports with the command show ip nat statistics.

Understanding Routing Protocols for Exam Questions

For routing protocols, focus on understanding the differences between distance-vector and link-state protocols. Distance-vector protocols, like RIP (Routing Information Protocol), use hop count as the metric to determine the best path, while link-state protocols, such as OSPF (Open Shortest Path First) and IS-IS, maintain a complete map of the network for routing decisions.

When discussing RIP, highlight its limitations, such as the maximum hop count of 15, which limits its scalability. Make sure to note that RIPng supports IPv6, but the basic operation remains the same. With OSPF, emphasize its use of areas and LSAs (Link State Advertisements) for efficient routing in large networks, which helps reduce the size of routing tables.

For BGP (Border Gateway Protocol), discuss its use for inter-domain routing and its reliance on AS (Autonomous Systems)) for path selection. In most cases, BGP uses path vector technology and allows for complex policy-based routing. Key attributes to understand for BGP include AS Path, Next Hop, and Local Preference.

Understand how to configure each protocol. For example, configuring OSPF involves enabling it on an interface with the network command and assigning the router to the correct area. For BGP, it requires the neighbor command to establish peer relationships and the network command to advertise prefixes.

Make sure to also review the concepts of routing loops and convergence. The former can occur in distance-vector protocols but is avoided in link-state protocols through techniques like split horizon and poison reverse.

Lastly, be able to troubleshoot routing issues based on common problems such as missing or incorrect network advertisements, incorrect metric configurations, or misconfigured routing tables. Using tools like ping, traceroute, and show ip route commands will help diagnose issues effectively.

How to Analyze and Troubleshoot Packet Flow in Networks

To troubleshoot packet flow issues, begin by identifying the source and destination of the data, and determine the path the packet takes through the system. Use ping and traceroute to test connectivity and path consistency. These tools help detect network interruptions, bottlenecks, and delays at specific hops.

Use the show ip route command on routers to inspect the routing table. This will reveal the configured paths, network destinations, and whether the correct routing protocols are functioning. Any misconfigured routes could result in packet loss or misdirected traffic.

Analyze the ACLs (Access Control Lists) on routers and switches. Incorrect ACL configurations often block traffic and can prevent packets from reaching their intended destinations. Ensure that the correct permit/deny rules are set for the network’s flow requirements.

For layer 2 troubleshooting, check the MAC address table on switches using the show mac address-table command. If a device’s MAC address is not being learned properly, it could indicate an issue with the physical layer or incorrect port configurations.

Inspect the MTU (Maximum Transmission Unit) on each link in the path. If a packet is too large to traverse a link, it may get dropped. Check if Path MTU Discovery is properly configured to prevent fragmentation problems.

In the case of performance issues or slow traffic, utilize tools like Wireshark to capture packets and analyze network traffic in real-time. Look for retransmissions, delays, or abnormal traffic patterns that may suggest congestion or packet drops.

If a specific protocol, such as TCP, is involved, check for TCP window size mismatches or issues with flow control. Incorrect settings can lead to congestion or slow throughput, which will impact the packet flow efficiency.

For security-related packet flow issues, analyze firewall logs for dropped packets or access attempts. Verify that the correct ports and protocols are allowed for communication. Misconfigured security settings can block legitimate traffic and prevent packets from reaching their destination.

Finally, ensure that all physical devices, cables, and ports are functioning. A malfunctioning interface or a faulty cable could also contribute to packet loss or misrouting. Perform basic hardware checks to rule out physical layer issues.

Working with VLANs to Segment Communication

To effectively implement VLANs, first identify the traffic types and user groups that need to be segmented. Use VLAN IDs to categorize devices into logical segments. For example, group devices by department or function to optimize performance and security.

Configure VLAN interfaces on routers or layer 3 switches to enable inter-VLAN routing. This allows devices on different VLANs to communicate with one another. Assign the correct IP subnet to each VLAN interface to ensure proper addressing and communication between segments.

For proper tagging and routing, use 802.1Q tagging on trunk ports to allow multiple VLANs to traverse the same physical link. Ensure that trunk links are configured on both ends to support VLAN tagging and prevent communication breakdowns.

Use Access Control Lists (ACLs) to control traffic between VLANs. This ensures that only authorized communication occurs between VLANs. Deny any unauthorized access to sensitive segments to maintain network security.

Monitor VLAN performance and traffic flow using show vlan and show interface trunk commands on switches. These commands provide real-time information on VLAN status, membership, and the condition of trunk links. Troubleshoot any discrepancies in VLAN configurations to avoid segmentation issues.

Verify that spanning tree protocol (STP) is functioning correctly to prevent network loops. Misconfigurations or network failures could result in broadcast storms, impacting performance and communication.

If communication problems occur, verify that the correct VLAN is assigned to each port on the switch. Use show running-config and show vlan brief to confirm that ports are correctly mapped to their respective VLANs.

For better network isolation, consider implementing private VLANs or VLAN Access Control Lists (VACLs) to enhance security and reduce unnecessary broadcast traffic.

Configuring VPNs for Secure Communication

To configure a secure VPN, first choose a suitable protocol based on your requirements. Use IPSec for site-to-site connections or SSL VPN for remote user access. Ensure that both endpoints support the chosen protocol and have matching encryption settings.

Set up IPSec VPN by configuring the IKE (Internet Key Exchange) phase 1 and phase 2 parameters. In phase 1, configure the encryption (AES or 3DES), authentication (SHA), and DH group for key exchange. In phase 2, specify the IPsec protocol (ESP or AH) and the encryption and integrity algorithms for the tunnel.

For remote users, configure an SSL VPN server. Assign access policies based on user groups and ensure that strong authentication (such as multi-factor) is enabled. SSL VPNs often rely on a web portal for user access, so make sure the required certificates are installed and validated.

Verify VPN connectivity by performing a ping test between the remote client and the VPN server. Check the VPN logs for errors related to authentication or key exchange failures. Use show crypto ikev2 sa or show vpn-sessiondb on Cisco devices to monitor the status of the VPN tunnel.

To ensure secure communication, implement strong encryption algorithms and use key exchange mechanisms that prevent brute-force attacks. Routinely update encryption keys and certificates to maintain the integrity of the tunnel.

Check the firewall settings to ensure that required ports (e.g., UDP 500 for IKE) are open for the VPN to function properly. Additionally, configure NAT traversal if necessary to handle NAT devices between the VPN endpoints.

For more detailed guidance on configuring VPNs, refer to Cisco’s official documentation: Cisco Documentation.

Best Practices for Implementing Firewalls in Network Setup

Start by defining security zones to organize traffic flow. Separate internal and external traffic and ensure that appropriate policies are in place for each zone. This can be done by configuring demilitarized zones (DMZs) and using access control lists (ACLs) to manage inbound and outbound traffic.

Always apply a default-deny rule, which blocks all traffic unless explicitly allowed. This minimizes the attack surface and ensures that only necessary traffic passes through. Create specific rules based on source IP addresses, ports, and protocols for greater control.

Use stateful inspection to ensure that only valid, established connections are allowed through the firewall. This method tracks the state of network connections and prevents unauthorized traffic from being inserted into active sessions.

Regularly update firewall firmware and security patches to protect against known vulnerabilities. Make sure to set up an automated update schedule, or monitor updates from the vendor’s website for the latest releases.

Monitor traffic logs continuously and set up alerts for suspicious activity, such as failed login attempts or unusually large amounts of data being transferred. Use these logs to fine-tune firewall rules and improve network security.

Implement intrusion detection and prevention systems (IDPS) alongside your firewall to provide an additional layer of defense. This will help detect and mitigate potential threats in real time.

Consider using Next-Generation Firewalls (NGFW) if advanced features such as application-layer filtering, threat intelligence, and deep packet inspection are required. These firewalls offer more granular control over traffic and provide better defense against modern threats.

Test firewall configurations in a staging environment before deploying to production. This helps identify potential issues without risking your live network.

For more detailed guidance, consult resources from Cisco Firewalls Documentation.

How to Handle Network Performance Issues in Simulated Scenarios

Start by conducting a baseline performance test to establish expected network behavior. This helps identify deviations and isolate performance bottlenecks during the simulation. Record key metrics such as latency, throughput, and packet loss for comparison.

If network issues occur, follow these steps to troubleshoot effectively:

1. Check for congestion: Identify any high traffic periods or devices causing network overload. Use traffic analyzers like Wireshark or NetFlow to monitor data flow and pinpoint sources of congestion.
2. Verify device configuration: Ensure that routers, switches, and firewalls are configured correctly. Double-check interface settings, VLAN assignments, and routing tables to rule out configuration errors.
3. Monitor network load: Look at the CPU and memory usage on key devices. Overloaded routers and switches can degrade performance. Adjust device resources or redistribute the traffic load.
4. Check for errors: Use diagnostic tools to detect hardware errors, such as checksum errors, collisions, and buffer overruns. These can significantly impact network speed and reliability.
5. Test different paths: Use traceroute or similar tools to test packet paths and identify any routing loops or suboptimal routes that might be affecting performance.
6. Review Quality of Service (QoS) settings: If delays occur, ensure that QoS is configured to prioritize important traffic, such as VoIP or video conferencing, over less critical traffic.
7. Address physical layer issues: Inspect cables, connectors, and physical interfaces for damage or poor connections that may be causing packet loss or slow speeds.

Once the issue is identified, implement corrective measures, such as adjusting routing algorithms, reconfiguring devices, or increasing bandwidth, to optimize performance.

For real-time monitoring, use Palo Alto Networks Traffic Analysis Guide for insights into network traffic management and issue resolution.
