Complete Guide to Micrometer Measurement Solutions and Practice

To successfully complete any task involving precise measurements, understanding how to use measuring tools properly is key. For those working with small-scale measurements, one of the most critical skills is knowing how to interpret and use the measurement device accurately. Familiarity with the tool’s components and reading techniques can make a significant difference in test performance.

When you’re preparing for practical assessments or exams, you need to be comfortable with all aspects of using measurement instruments. Learn how to take accurate readings by mastering the scales and the specific steps required for proper measurement. Knowing how to identify common mistakes is equally important, as it can help avoid errors under pressure.

Practice makes a difference in building confidence and improving speed. Work through mock scenarios and familiarize yourself with real-life situations where precision is needed. With continued practice, you will gain both the skill and the speed needed to succeed in timed settings.

Micrometer Test Answers Guide

To properly interpret readings, familiarize yourself with the tool’s structure. Start by understanding how the spindle and anvil work together to measure the object accurately. Focus on the incremental scale markings, ensuring you can clearly identify whole, half, and fractional units.

When dealing with smaller measurements, precision becomes more critical. Always ensure the instrument is zeroed correctly before use. This eliminates potential errors that could impact the accuracy of your readings. Regularly inspect the tool for signs of wear, as even minor damage can lead to miscalculation.

Practice with different objects, noting how measurements change depending on the diameter. Additionally, familiarize yourself with common measurement units and conversions to speed up your process. Simulated tasks and mock scenarios will help you become more efficient under time constraints.

Always double-check readings to prevent misinterpretation. If in doubt, take the measurement again, ensuring consistency across all attempts. Handling the tool carefully and avoiding unnecessary force will help maintain the instrument’s accuracy over time.

Understanding the Basics of Micrometer Measurements

Accurate measurement begins with a clear understanding of the scale and increments on the instrument. Focus on the main components: the anvil, spindle, and thimble. The anvil and spindle come together to form the measuring surface, while the thimble allows you to read precise measurements as you rotate it.

The measuring scale typically consists of two parts: the main scale and the rotating scale. The main scale gives you the whole number, and the rotating scale provides fractional measurements. To read the result, align the thimble’s markings with the main scale. A typical reading might show a value like 25.35mm, with the 25mm from the main scale and 0.35mm from the rotating scale.

For better precision, ensure the instrument is zeroed before each use. If you’re measuring a small part, be mindful of any deviations from zero or potential errors due to worn-out parts. Always handle the device gently to avoid distortion and ensure consistent results.

Practicing with various objects helps you get comfortable with adjusting the instrument’s settings and interpreting measurements. Focus on objects with different diameters, as this will test your ability to apply the correct technique and read measurements accurately.

How to Read a Micrometer Correctly

Begin by ensuring the instrument is properly calibrated to zero. To do this, close the anvil and spindle together and check that the scale reads zero. If not, adjust accordingly.

Next, place the object to be measured between the anvil and spindle. Turn the thimble until it lightly touches the object without applying excessive pressure. This ensures an accurate measurement without deforming the object.

Now, observe the readings on both the main scale and the rotating scale. The main scale provides the whole number, while the rotating scale gives the fractional value. Carefully align the thimble’s scale with the main scale to determine the exact measurement.

The reading is a combination of both scales. For example, if the main scale reads 25mm and the rotating scale reads 0.35mm, the total measurement is 25.35mm.

Always be aware of the unit of measurement–ensure it is in millimeters or inches depending on the instrument’s specification.

Ensure a steady grip on the tool while reading to avoid parallax errors. Keep the instrument clean and properly maintained for consistent results.

Common Micrometer Errors and How to Avoid Them

One common mistake is not ensuring the tool is properly calibrated. Before taking any measurement, check that the anvil and spindle close fully. If they don’t align to zero, adjust the tool to eliminate calibration errors.

Avoid applying excessive force when closing the spindle. Over-tightening can compress the object or distort the reading. Instead, gently close the spindle until it makes light contact with the object.

Improper reading of the scales can lead to errors. Ensure that the rotating scale lines up exactly with the main scale, taking care to avoid parallax by aligning your eye level with the tool’s markings.

Incorrectly handling the tool can also introduce inaccuracies. Always maintain a steady grip to prevent shifting the instrument during measurement. Ensure the tool is clean and free from debris, which could affect the reading.

Temperature fluctuations can also affect measurements. When measuring metal parts, for example, consider the material’s coefficient of expansion. Measure parts at room temperature to avoid dimensional changes caused by heat or cold.

Lastly, never use the tool on worn or damaged components. Check the instrument for signs of wear, such as chipped anvils or worn threads, and replace or repair as needed to ensure consistent, accurate results.

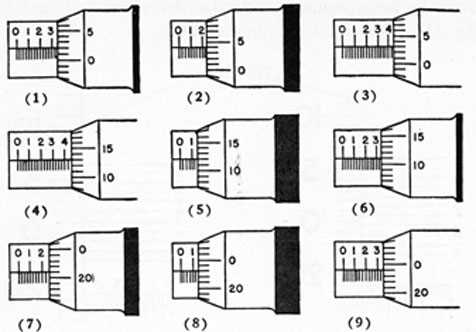

Interpreting Micrometer Scale Readings

To interpret the measurement correctly, start by reading the main scale. This provides the value up to the nearest millimeter or hundredth of a millimeter. Read the line on the main scale where the spindle aligns with the sleeve.

Next, focus on the rotating scale, which gives the additional reading. This scale is typically divided into 25, 50, or 100 parts, depending on the tool. Identify the exact line on the rotating scale that aligns with the reference scale.

To get the final measurement, add the value from the main scale and the rotating scale. For example, if the main scale reads 5mm and the rotating scale reads 0.12mm, the total measurement is 5.12mm.

If your tool includes a thimble scale, read it in the same way. The thimble scale provides further fractional measurements, allowing for more precision in the result.

Ensure proper alignment when taking the reading. Any misalignment, such as looking from an angle, can cause errors in interpreting the values. Always maintain eye-level alignment to avoid parallax.

For measurements involving larger parts, ensure that the anvil and spindle are positioned correctly. Always check that the part is placed fully between the anvil and spindle to avoid reading errors due to incomplete contact.

Step-by-Step Approach to Measuring with a Micrometer

1. Prepare the tool: Ensure the measuring instrument is clean and free from debris. Wipe the anvils and spindle with a soft cloth to avoid contamination that could affect measurements.

2. Zero the instrument: Before taking any measurement, check the instrument’s calibration. Close the measuring faces gently and check that the scale reads zero. If it doesn’t, adjust the tool until it does.

3. Position the object: Place the object securely between the spindle and anvil. Ensure it is aligned properly to avoid errors in the measurement. The part should be fully inserted, with no gaps or tilting.

4. Close the tool gently: Turn the thimble or screw to bring the spindle into contact with the object. Apply even pressure to avoid crushing or distorting the object. The tool should close smoothly without force.

5. Read the main scale: Once the tool is in contact with the object, read the value on the main scale. This will provide the measurement to the nearest whole unit (millimeter or inch, depending on your tool).

6. Check the rotating scale: Look at the rotating scale for additional precision. Identify the line on the rotating scale that aligns with the reference point on the main scale. This will give you the fractional value of the measurement.

7. Record the measurement: Add the value from the main scale to the value from the rotating scale to get the final measurement. Write down the result for accuracy and reference.

8. Inspect for errors: After recording, double-check the alignment and pressure. Ensure the measurement was taken with the tool correctly positioned and no interference from external factors.

9. Clean the tool again: After completing the measurement, clean the tool once more. Store it in a safe, dry place to prevent damage or contamination before the next use.

How to Use Micrometers for Different Materials

1. Measuring Soft Materials: When measuring soft materials such as rubber or plastic, use light pressure to avoid deformation. A micrometer with carbide anvils is ideal for these materials as it helps prevent wear.

2. Measuring Metal Objects: For metallic materials, apply moderate pressure to ensure the object is measured accurately without compressing the surface. If measuring hard metals, ensure the tool is properly calibrated and use a micrometer with a hardened anvil.

3. Measuring Thin Materials: For thin sheets or small parts, be sure to align the object properly in the tool. If the material is extremely thin, use a micrometer with a depth measuring attachment to avoid inaccuracies.

4. Measuring Hot Materials: When dealing with materials exposed to high temperatures, it’s crucial to use a micrometer designed for high-heat environments. Always allow the material to cool before measuring to ensure accurate readings.

5. Measuring Coated Materials: For materials with coatings (such as painted or anodized surfaces), measure the base material directly, ensuring the coating is not compressed during the measurement. Adjust the micrometer settings if necessary to account for any coating thickness.

6. Measuring with Different Tolerances: When measuring parts with tight tolerances, ensure the tool is calibrated to the specific range required. For materials with fine tolerances, use a micrometer with a digital readout for enhanced precision.

7. Measuring Non-Uniform Surfaces: For materials with uneven surfaces, use a micrometer with a special anvil or a micrometer stand. This will help achieve more consistent readings by minimizing surface irregularities.

8. Measuring Small-Diameter Parts: Use a micrometer with an appropriate measuring head for small-diameter objects. It’s important to keep the tool aligned properly and avoid tilting to ensure an accurate measurement.

9. Measuring Opaque Materials: For opaque materials where surface detail is not visible, use a micrometer with a longer thimble or a depth gauge. This allows you to take precise measurements even when visual alignment is difficult.

Calculating Tolerances Using Micrometer Measurements

To calculate tolerances, subtract the nominal measurement from the actual reading taken with the tool. For example, if the nominal size is 50 mm and the measured value is 49.95 mm, the tolerance is -0.05 mm.

1. Determine the Nominal Size: The nominal size is the target value or standard dimension specified by the design. This is the reference against which measurements are compared.

2. Take the Measurement: Use the tool to measure the part or object in question. Ensure the tool is calibrated, and the measurement is accurate to the highest degree of precision allowed by the tool.

3. Calculate the Deviation: Subtract the nominal size from the actual measured size to calculate the deviation. For instance, if the part measures 50.02 mm and the nominal value is 50.00 mm, the deviation is +0.02 mm.

4. Apply Tolerance Limits: Determine the acceptable tolerance range specified for the part. For example, a part may have a tolerance of ±0.05 mm. This means the measurement can vary by up to 0.05 mm above or below the nominal size.

5. Check if Measurement Falls Within Tolerance: After calculating the deviation, verify if the measurement is within the allowed tolerance range. If the deviation falls outside the specified range, the part may be considered out of specification.

6. Consider the Type of Tolerance: Depending on the part, tolerances could be unilateral (only allowing variation in one direction) or bilateral (allowing variation in both directions). Always check the specifications to understand the tolerance type.

7. Document Tolerances: Record the measurements along with the calculated deviation and tolerance limits. This will help in verifying the quality and fit of the part during the production process.

Calibration Procedures and Importance

Calibration of precision measuring instruments is a key part of maintaining measurement accuracy. It ensures that your instrument provides reliable readings, which is critical for any quality control or production process.

1. Clean the Instrument: Before calibrating, make sure that the instrument is free from dirt, dust, or any contaminants. Any foreign material can affect the accuracy of the measurement.

2. Use Calibration Standards: To calibrate, use certified calibration standards that are traceable to national or international standards. These standards should be as close as possible to the range of measurements you will perform.

3. Check Zero Setting: Set the tool to its zero position and verify that it shows the correct zero reading. Adjust if necessary, following the manufacturer’s instructions.

4. Measure Known Dimensions: Measure an object with a known size using the instrument. Compare the measurement with the actual known value. If there is a discrepancy, adjust the instrument as needed.

5. Record Results: Document the calibration results, including any adjustments made. This ensures that any future discrepancies can be traced back to the calibration history of the instrument.

6. Calibration Frequency: Calibration should be done regularly based on usage, environmental conditions, and the precision required. High-usage instruments may require calibration more frequently.

7. Environment Control: Calibration should be performed in a stable environment with minimal temperature fluctuations. Temperature changes can affect the accuracy of measurements.

Neglecting calibration can lead to errors, causing inaccurate measurements that may go undetected, which could result in defective products or costly repairs.

For detailed guidelines on calibration and best practices, visit the National Institute of Standards and Technology (NIST).

Understanding the Different Types of Measuring Instruments

Each type of measuring instrument is designed for specific applications, offering varying levels of precision and capability. The following types are commonly used for precise measurements:

• Outside Caliper: This instrument is used for measuring the external dimensions of an object, such as its diameter or thickness. It is commonly used in mechanical workshops and manufacturing.
• Inside Caliper: Used for measuring the internal dimensions of an object, like the diameter of a hole. These tools are similar to outside calipers but are designed with inward-facing jaws.
• Depth Gauge: This tool is designed for measuring the depth of holes, slots, and other indentations in a part. The tool includes a calibrated stem that fits into the recess to measure its depth.
• Blade Type: Typically used in measuring the thickness or width of narrow objects. The measuring blade is inserted between two parallel surfaces to determine the measurement.
• Vernier: This is a specific scale incorporated into measuring tools to enhance the accuracy of measurements. It helps to determine fractional values that are not visible on the main scale.
• Digital: Digital measuring tools use electronic sensors and a digital display to show the measurements, offering more precise readings and eliminating the need for manual interpretation.
• Specialized Types: There are also specific instruments designed for certain tasks, such as measuring thread pitch, or used in industries requiring high precision, like aerospace or semiconductor manufacturing.

Selecting the right tool depends on the type of measurement needed, the material being measured, and the required accuracy. Each instrument is best suited for different measurement applications, and understanding their capabilities will ensure precise results.

How to Practice Measuring Skills for Exam Situations

To master the proper technique for precise measurements, follow these steps:

• Practice on Various Objects: Regularly measure objects with different dimensions and shapes. Start with simple cylindrical objects and progress to more complex geometries like irregular shapes and threaded items.
• Understand Measurement Readings: Focus on reading and interpreting the scales accurately. Practice identifying whole numbers, fractional readings, and smaller increments. Ensure you can quickly differentiate between main and auxiliary scales.
• Consistent Pressure: Apply uniform pressure when measuring objects. Over-tightening or under-tightening can cause inaccurate readings. Aim for consistent force each time you measure.
• Simulate Exam Conditions: Practice under timed conditions. Set a stopwatch and try to measure several objects within the allotted time frame to mimic the exam setting. Focus on speed without compromising accuracy.
• Focus on Calibration: Before measuring, ensure that the measuring tool is calibrated correctly. Regular calibration prevents systematic errors, ensuring that measurements remain accurate and reliable.
• Review Tolerances: Understand the acceptable tolerance for different materials or parts. Practice comparing your readings against the specified tolerance range to ensure your measurements are within the required limits.
• Use Visual Aids: Familiarize yourself with diagrams, images, and calibration charts. Visual aids can help you better understand how measurements are read and interpreted, increasing speed and precision in an exam scenario.

By practicing these techniques consistently, you’ll improve your accuracy, speed, and confidence when taking measurement-based exams.
