To conduct accurate and safe measurements with electrical testing tools, understanding the proper use of devices and the correct approach to data interpretation is crucial. Knowing how to handle and operate measuring instruments reduces the risk of accidents and ensures reliable results during electrical diagnostics.
Always start by confirming that the equipment is in proper working order before use. Inspect leads, probes, and test equipment for visible damage. Regular maintenance and calibration should be performed to maintain the integrity of readings. This simple yet important step can prevent miscalculations and ensure accurate diagnostics when working with voltage and current.
Be sure to follow standard operating procedures when performing tests. Identify the correct settings for the device and apply safety checks before beginning. Taking proper precautions, such as wearing protective gear and ensuring that the area is free of hazards, is a must for anyone using these tools in practical scenarios.
Additionally, understanding the key features of a testing device can simplify interpretation. Familiarize yourself with functions like insulation resistance, continuity, and voltage checks. This knowledge will allow you to quickly assess the results and identify any potential issues in the electrical systems you are evaluating.
Fluke Electrical Measurement Safety Test Answers
Begin by verifying that the testing instrument is in good working condition. Check the calibration settings and confirm that the probes and cables are intact and free from damage. Ensure that all components are properly connected before starting the procedure.
Follow the manufacturer’s guidelines for safe usage, especially when handling live circuits. Always use the correct test leads for the specific task to avoid short circuits or inaccurate readings. Additionally, ensure the multimeter is set to the correct range for the measurements you intend to take.
For each test, ensure that you are measuring at the correct points in the circuit. Misplacement of probes can lead to false readings or, worse, damage to the device or electrical system. Always verify your connection points and avoid making direct contact with live parts.
When performing voltage checks, use the proper technique to minimize the risk of electric shock. Hold the multimeter by the insulated portion of the probes, and never touch the metal parts while the device is in use. This reduces the chances of electrical contact during testing.
Keep the workspace clean and organized. This reduces the risk of accidents due to tripping over cables or knocking over equipment. Ensure that any equipment not in use is properly stored to prevent damage or interference with ongoing testing procedures.
Finally, after completing each test, double-check the results. If any irregularities are found, revisit the process to confirm the readings. Record your findings accurately for future reference and troubleshooting.
How to Properly Set Up Fluke Electrical Measurement Tools
Start by ensuring the device is powered off before connecting any test leads. Insert the correct leads into the proper ports–typically the red lead into the “VΩ” port and the black lead into the common “COM” port. Double-check that the multimeter is configured for the intended measurement type (voltage, current, resistance, etc.) to avoid damaging the tool or obtaining inaccurate readings.
Next, select the appropriate range for the measurement you’re taking. If you’re unsure, start with the highest range to avoid overloading the instrument. Once you get an initial reading, you can adjust the range to the appropriate level for greater accuracy.
Before using the tool, inspect the probes for wear or damage. Cracks or exposed wires can result in faulty readings or electrical hazards. Always use the correct type of probes for the specific measurements you’re taking, and make sure they are properly insulated.
When testing live circuits, ensure that the tool is set to the correct voltage range and that the test leads are connected securely. Hold the insulated parts of the probes at all times to avoid accidental contact with electrical parts. Avoid touching any part of the tool, except the insulated handles, while in use.
For current measurements, ensure the tool is set to the correct current range. Never attempt to measure current with the tool set to voltage, as this can result in serious damage to the device. Always be mindful of the current being measured to avoid overloading the tool.
Finally, always check the battery level before beginning any testing. A weak battery can affect the accuracy of readings, so it’s best to replace or recharge the battery as needed before using the tool.
Common Safety Procedures for Using Multimeters
Always inspect the device for visible damage before use. Check the probes and cables for any signs of wear or fraying. Damaged leads can result in inaccurate readings or electrical hazards, so replace any damaged parts immediately.
Before connecting the probes to any circuit, ensure the multimeter is set to the correct function. Never use the tool in the wrong setting, such as measuring current when it is set for voltage, as this can cause severe damage to the device.
When measuring live circuits, ensure that you hold the multimeter by its insulated body. Avoid touching any metal parts of the probes or the instrument itself while testing to prevent electric shock.
Always connect the test leads to the multimeter before making contact with the circuit. Similarly, disconnect the leads from the circuit before removing them from the multimeter. This minimizes the risk of accidental short circuits.
Use the highest range setting if you’re unsure of the expected measurement. Once a stable reading is displayed, adjust the range for greater accuracy, if necessary.
Never attempt to measure current on a live circuit with the multimeter set to measure voltage or resistance. Doing so can damage the device and create serious hazards.
Ensure the multimeter is powered off before connecting it to any unknown circuits. This helps prevent internal damage and ensures a safer testing process.
When measuring resistance, ensure the circuit is not energized. Measuring resistance on a live circuit could damage the multimeter and pose safety risks.
Check the battery level regularly. A low battery can affect the accuracy of readings. Replace or recharge the battery as necessary before using the multimeter.
Finally, always follow the manufacturer’s guidelines for safe use, maintenance, and storage of the device. Proper care of the multimeter ensures reliable performance and longevity.
Understanding the Key Functions of Electrical Testers
Multimeters are equipped with various functions to measure voltage, current, and resistance. The voltage function (V) allows you to measure both AC and DC voltages, which is fundamental when diagnosing circuit issues.
The current measurement function (A) helps to identify the flow of current in a circuit, essential for detecting overloads or short circuits. This feature is especially useful when troubleshooting appliances or systems where power consumption needs to be monitored.
Resistance measurement (Ω) detects the resistance in components or circuits. It can help identify faulty connections or short circuits by indicating whether a component is open or closed.
Capacitance measurement (F) is used to assess the health of capacitors in a circuit. This function allows you to detect faulty capacitors that may cause electrical devices to malfunction.
Continuity check uses an audible beep to confirm whether a circuit is complete. This function is invaluable for quickly verifying the integrity of wiring and detecting short circuits in complex installations.
Diode testing is another crucial feature, used to verify the proper functioning of diodes in a circuit. This ensures the direction of current flow is as intended and helps identify faulty diodes in devices like power supplies or LED circuits.
The frequency measurement function allows you to measure the frequency of an AC signal, which is important for troubleshooting equipment that relies on precise signal frequencies, such as in communication systems.
Data hold function captures and freezes a reading, which is useful when testing in difficult-to-reach areas. This allows for easy reading without needing to look directly at the device during the measurement process.
Some testers come with auto-ranging functionality, which automatically adjusts the scale for accurate readings. This eliminates the need for manual range adjustments, saving time and improving convenience.
Finally, ensure you understand the settings and limits of each function on your tester. Always follow the device’s manual to avoid misuse and ensure safe and accurate measurements.

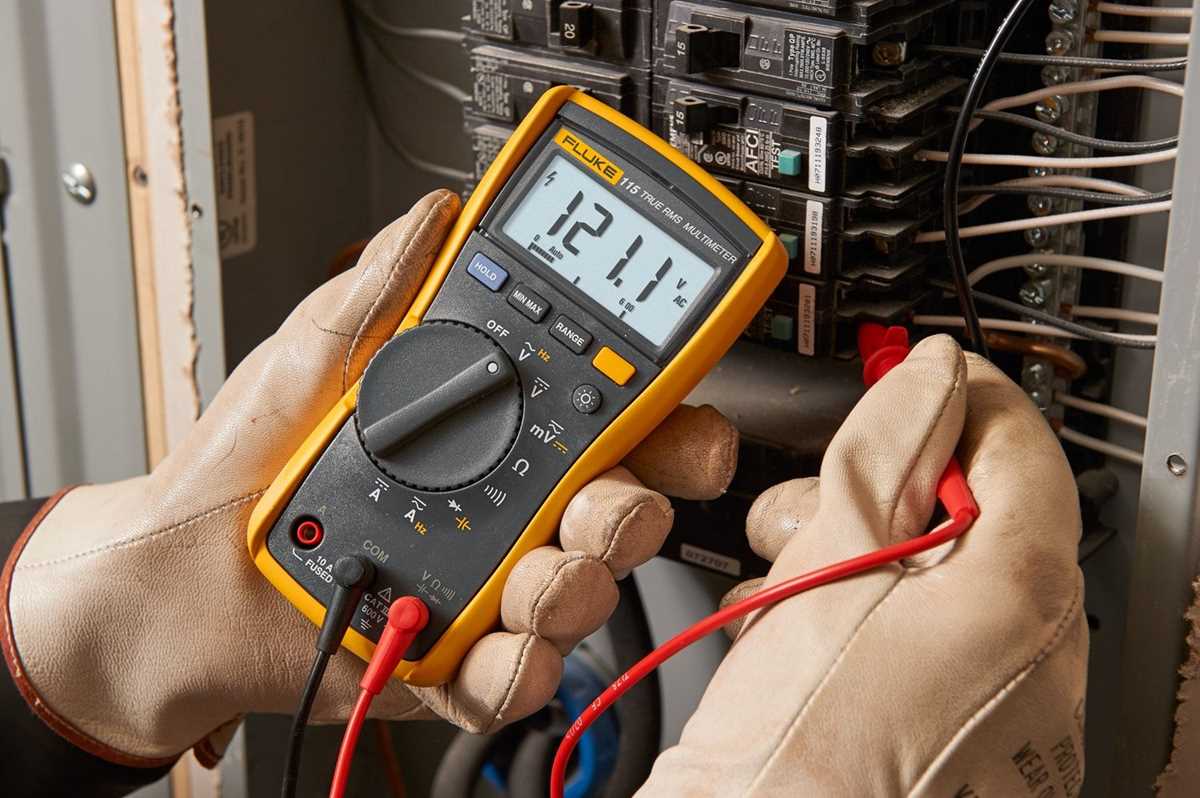

Step-by-Step Guide to Conducting a Safe Voltage Check
Before starting, ensure that the tool is properly set up and in good working condition. Verify that the device is calibrated and has fresh batteries.
1. Prepare Your Work Area: Clear any obstructions and ensure there is sufficient light to work safely. Make sure the circuit you’re testing is de-energized before proceeding with any setup.
2. Verify the Multimeter Settings: Set your tool to measure voltage (V). For AC or DC, select the corresponding setting based on the system you are testing.
3. Inspect the Probes: Examine the test leads for any wear or damage. Replace any damaged probes immediately. Ensure the probes are properly attached to the device–red to the positive input, black to the common input.
4. Test for Proper Function: Before measuring the voltage, use the multimeter on a known live circuit to confirm it is functioning correctly. This ensures that the tool will provide accurate readings during the test.
5. Connect the Probes: Insert the red probe into the positive terminal and the black probe into the common terminal. Carefully touch the red probe to the live terminal and the black probe to a ground or neutral point.
6. Read the Voltage: Observe the digital or analog display on your multimeter. Take note of the voltage reading. For AC circuits, ensure you are reading the RMS value, while for DC, the reading will be steady.
7. Test the Circuit: Check multiple points in the circuit if necessary, ensuring that each location is properly tested for voltage. Always keep a safe distance from exposed live parts.
8. Disconnect and Record Readings: After completing the voltage check, carefully remove the probes from the circuit. Record the voltage readings in a safe, dry location for further analysis or reporting.
9. Inspect and Store Your Equipment: After use, inspect the multimeter and probes for any signs of wear or damage. Store your tools in a dry, clean place to prevent any future issues.
Always adhere to local regulations and company-specific safety protocols when conducting any live voltage checks. Safety should always be a top priority to prevent accidents and injuries.
How to Interpret Results from Insulation Resistance Measurements
When interpreting results from insulation resistance readings, follow these key guidelines:
1. Compare to Manufacturer Specifications: Always refer to the specifications provided by the manufacturer of the equipment or installation. These typically include minimum insulation resistance values for safe operation. A reading below the specified value indicates potential issues with insulation integrity.
2. Check the Measurement Unit: Insulation resistance is measured in ohms (Ω). Typically, results are expressed as Megaohms (MΩ) or Gigaohms (GΩ) for high-resistance values. Be sure to check the unit on the display to avoid misinterpretation.
3. Interpret the Value:
- If the resistance value is high (e.g., above 1 MΩ), the insulation is generally in good condition.
- A reading between 1 MΩ and 100 kΩ may indicate early signs of wear or contamination.
- Values lower than 100 kΩ usually suggest poor insulation and require immediate action, such as inspection or replacement of faulty components.
4. Understand Trending Results: If measurements are taken over time, look for trends. A gradual decrease in insulation resistance might suggest degradation of the material, even if current readings are still acceptable. Keep track of these trends to predict potential failures.
5. Account for Environmental Factors: Temperature and humidity can significantly affect resistance readings. For accurate results, ensure that the measurement environment is considered, and account for any external factors that may influence the test.
6. Assess the Test Voltage: The voltage applied during the measurement can impact the readings. Typically, insulation resistance tests are conducted with higher voltage (e.g., 500V or 1000V) to ensure the results are not influenced by leakage currents at lower voltages. Ensure the correct voltage is selected based on the item being tested.
7. Note High or Low Resistance Effects:
- High resistance readings indicate good insulation, while low resistance readings point to potential faults.
- Unusual spikes or drops in resistance can indicate areas of concern, such as moisture ingress, contamination, or physical damage to the insulation material.
8. Verify Measurement Consistency: If readings fluctuate significantly between tests or from different points on the same system, this may indicate a problem with the testing setup, such as poor contact or equipment malfunction. Consistency is key to accurate results.
By following these steps and consistently interpreting your results based on the above criteria, you can make informed decisions about insulation integrity and potential maintenance needs.
How to Troubleshoot Common Errors During Electrical Measurements
If your readings seem inaccurate or inconsistent, follow these steps to resolve common issues:
1. Check the Connection and Probes: Ensure that the test leads are securely connected to both the device and the testing equipment. Loose or worn-out probes can result in inaccurate readings or no reading at all. Inspect the probe tips for corrosion or damage.
2. Verify the Measurement Range: Incorrect range selection is a frequent cause of errors. For voltage or resistance measurements, make sure the tool is set to an appropriate range. Using a range that is too low can result in overloading the device and false readings, while a range that is too high might yield no results.
3. Inspect the Battery Status: Low or dead batteries can cause inaccurate or fluctuating readings. Always check the battery level before beginning measurements. Replace batteries regularly to avoid unexpected failures during measurements.
4. Test Environment Conditions: Ensure that the environment is suitable for taking accurate readings. Extreme temperatures, moisture, or electromagnetic interference can distort results. Always perform measurements in a dry and stable environment to prevent false readings.
5. Look for Display Errors: Some devices may show error codes if there’s a malfunction. Refer to the device’s user manual to interpret any error codes or symbols displayed. Common issues might include overload, low battery, or connection issues.
6. Reset the Device: If the tester is acting erratically or stuck on a specific reading, power cycle or reset the device to clear any temporary errors. This can often resolve minor glitches.
7. Ensure Proper Calibration: Over time, testing instruments may drift from their original calibration, resulting in inaccurate measurements. Regular calibration is essential for maintaining precision. If you notice significant deviations in readings, consider recalibrating the tool or contacting the manufacturer.
8. Examine the Circuit Under Test: Faults in the circuit being tested, such as loose connections or short circuits, can affect the accuracy of your readings. Inspect the circuit thoroughly to rule out issues before proceeding with further measurements.
For more detailed troubleshooting steps, visit the official manufacturer’s support page: https://www.fluke.com/support.
Preventing Hazards While Using Testing Equipment
1. Inspect Equipment Before Use: Always examine the tools for visible damage, wear, or corrosion before beginning any work. Cracked casings, frayed leads, or worn-out insulation can cause serious risks. Replace any defective parts before use.
2. Use the Correct Rating for the Task: Ensure that the testing device is rated for the specific voltage or current levels of the circuit. Using equipment beyond its rated limits can result in faulty readings and potential hazards.
3. Verify Proper Grounding: Always confirm that the testing device and the circuit under test are properly grounded. An ungrounded system increases the risk of electric shock or equipment failure. Ensure grounding connections are secure before initiating measurements.
4. Maintain Proper Insulation: Ensure that the test leads and probes are fully insulated and free from cuts or damage. Non-insulated tools increase the risk of accidental contact with live components and can lead to electric shock.
5. Keep Your Hands Dry: Moisture can significantly increase the risk of electric shock. Always ensure that your hands, the tools, and the area around the testing setup are dry before use. Avoid working in damp or wet conditions whenever possible.
6. Avoid Working Alone: Always have a second person present when working with high-voltage equipment. A colleague can assist in case of emergencies, provide support in hazardous situations, and help with immediate response if needed.
7. Use Personal Protective Equipment (PPE): Always wear insulated gloves, safety glasses, and other appropriate PPE when conducting measurements. PPE helps protect you from potential shock hazards and debris that could result from malfunctioning equipment.
8. Stay Aware of Circuit Conditions: Before taking measurements, ensure the circuit is de-energized or properly isolated if required. Use lockout/tagout procedures to prevent accidental energization. Always verify that the circuit is not live before measuring.
9. Understand the Equipment’s Limits: Be aware of the limitations of the equipment you’re using. Avoid attempting to measure outside the recommended parameters and never force the tool into a configuration it’s not designed for.
10. Follow Manufacturer Instructions: Always adhere to the manufacturer’s instructions and guidelines. This includes proper use, maintenance, and calibration. Refer to the user manual for specific safety precautions and warnings tailored to your device.
What to Do if You Encounter Unexpected Readings with Testing Equipment
1. Check the Connections: Ensure that the leads and probes are properly connected to both the device and the circuit. Loose or damaged connections can lead to erratic or incorrect readings. Reconnect or replace the leads if necessary.
2. Verify the Settings: Confirm that the equipment is set to the correct mode and range for the measurement you are performing. A wrong setting can result in inaccurate readings. Refer to the device’s user manual for guidance on selecting the proper settings.
3. Inspect the Equipment for Damage: Examine the device for any physical damage, such as cracks, worn insulation, or loose parts. Damaged equipment can produce faulty readings or fail to function properly. If damage is found, repair or replace the tool before use.
4. Ensure the Device Is Properly Calibrated: Calibration drift can cause inaccurate results. Verify that the tester is properly calibrated according to the manufacturer’s recommendations. If calibration is needed, perform it or have it done by a qualified professional.
5. Confirm the Circuit’s Condition: Make sure that the circuit is in proper working condition and that no issues, such as short circuits or open connections, are affecting the results. Unexpected readings could indicate a problem with the circuit rather than the testing device.
6. Consider Environmental Factors: External conditions such as temperature, humidity, or electromagnetic interference can impact the accuracy of measurements. Take note of the environment in which you are conducting the tests and move to a more stable location if needed.
7. Reset the Device: If you continue to encounter strange readings, perform a reset on the tester. This can often resolve software glitches or other issues that might cause the equipment to behave unexpectedly.
8. Test the Equipment on a Known Source: To rule out problems with the device, test it on a known, stable source or reference material. If the readings are still inconsistent, the equipment may need to be serviced or replaced.
9. Consult the User Manual: If unsure about the cause of unexpected readings, consult the user manual for troubleshooting tips specific to your tool. The manual often contains detailed instructions for diagnosing and resolving common issues.
10. Contact Technical Support: If the issue persists after performing the above checks, contact the manufacturer’s technical support team. They can provide more specific guidance and help resolve complex problems with the device.
How to Maintain and Calibrate Testing Devices
1. Clean the Device Regularly: Dust and debris can accumulate on testing equipment over time, affecting performance. Use a soft cloth to wipe the device and connectors. For more thorough cleaning, use compressed air to remove particles from tight spaces.
2. Inspect the Leads and Probes: Regularly check the test leads and probes for signs of wear or damage. Replace any worn or frayed leads immediately to prevent inaccurate readings or safety hazards.
3. Store the Equipment Properly: Store your tools in a dry, clean, and temperature-controlled environment. Avoid exposure to extreme temperatures or humidity, as these can damage sensitive components. Use protective cases when transporting or storing the equipment.
4. Perform Regular Calibration: Calibration should be performed periodically to ensure the accuracy of the device. Follow the manufacturer’s guidelines for calibration intervals, which are typically every 12 months or after heavy use.
5. Use a Certified Calibration Source: To calibrate the device, use a certified and known good calibration source. This ensures that the measurements are accurate and meet industry standards. Consult the manufacturer’s recommendations for specific calibration equipment.
6. Check Battery Levels: Low batteries can affect the performance of testing equipment. Regularly check battery levels and replace them when necessary. Avoid leaving the device on for extended periods without use to conserve battery life.
7. Reset the Device: If the device shows inconsistent results or error messages, perform a reset. This will clear any glitches in the software or internal system and restore proper function.
8. Update Firmware: Manufacturers may release firmware updates to improve the accuracy and functionality of testing devices. Check the manufacturer’s website for firmware updates and follow their instructions for installation.
9. Perform Self-Checks: Many testing devices include built-in self-checking features. Use this functionality to ensure the device is operating within its specified range before use. If the device fails the self-check, it may need to be recalibrated or repaired.
10. Seek Professional Calibration Services: If you are unsure about calibrating the device yourself or if your equipment requires high-precision calibration, seek professional calibration services. Professional services ensure that the device meets all necessary standards and operates accurately.
11. Refer to the User Manual: Always follow the manufacturer’s instructions regarding maintenance and calibration. The user manual will contain specific guidelines for maintaining the device, troubleshooting common issues, and performing calibration correctly.
Recommended Practices for Documenting Test Results for Compliance
1. Include Clear Identification Information: Always document the name of the person conducting the measurement, the date, and the specific equipment or tools used. This will help trace the results to a specific individual and verify the device’s calibration status.
2. Record Environmental Conditions: Note the environmental conditions, such as temperature, humidity, or potential sources of interference. These factors can impact the accuracy of readings and should be documented to ensure the results are valid under specific circumstances.
3. Include a Description of the Procedure: Provide a detailed account of the procedure followed during the measurement process. This includes the settings used on the device and the method of data collection. This ensures that the process can be repeated consistently and accurately.
4. Document All Results: Record the actual readings obtained during the process, including any anomalies or unexpected findings. If there is more than one set of measurements, ensure that each one is documented clearly with time stamps or sequence numbers.
5. Use Standardized Formats: Use a consistent format for recording the results. This can include tables, charts, or specific codes to represent different values or statuses. This reduces the chance of misinterpretation and improves clarity when reviewing the data.
6. Attach Supporting Visual Evidence: Whenever applicable, take photos or screenshots of the measurement display. Include these visuals in the documentation to support the recorded data and provide additional context, especially when unusual results are noted.
7. Compare Results with Standards: Include a comparison of the recorded results against relevant standards or thresholds. Indicate whether the results meet, exceed, or fall short of regulatory or manufacturer requirements. If there are discrepancies, note the corrective actions or follow-up required.
8. Use Digital Documentation Tools: Leverage software and digital platforms for tracking and storing results. These tools can help in automating data collection, archiving, and producing reports, as well as ensuring that the information is easily accessible for future audits or reviews.
9. Keep Records Secure and Accessible: Store the documentation in a secure but accessible location. Ensure that both hard and digital copies are protected against loss or unauthorized alterations. This will help maintain the integrity of the records for compliance verification.
10. Review and Update Documentation Regularly: Regularly review and update the documentation process. Ensure it aligns with any changes in standards, regulations, or operational practices. Make sure that any revisions are well-documented and tracked to maintain compliance.
11. Confirm Sign-Off from Authorized Personnel: Ensure that the documented results are reviewed and signed off by an authorized individual. This confirms that the results meet compliance requirements and that any necessary corrective actions are planned and followed up on.
12. Maintain a Historical Record: Retain all test records for the required duration specified by regulatory standards or company policy. This historical record is important for future reference, audits, and verifying long-term trends or issues.
