If you encounter difficulty in solving problems involving electrical components and their interactions, focus on mastering Ohm’s Law, Kirchhoff’s Voltage and Current Laws. These are the foundation for analyzing and solving most challenges related to electrical networks. A solid grasp of voltage, current, and resistance relationships is crucial. When calculating total resistance in series or parallel configurations, remember the formulas for each setup–resistance adds directly in series and inversely in parallel.
Pay special attention to the different types of power calculations. In circuits with resistive components, the power dissipation formula P = I²R or P = V²/R will help you determine energy usage. For reactive components like inductors and capacitors, you must also factor in frequency and reactance. Solving for impedance in AC systems is a skill that requires understanding both resistive and reactive components together.
While performing voltage drop calculations, keep in mind the distribution of potential across the components. If a circuit contains multiple resistors, identify how the total voltage is divided among them using Kirchhoff’s Law. Accurate voltage division often dictates how much energy is lost and how the system behaves under load.
Lastly, if dealing with more complex setups like RLC circuits, ensure to account for the phase shift between voltage and current. In these cases, solving the system might require the use of phasor diagrams or complex number representations to analyze the behavior of the system at different frequencies.
Problem Solving in Electrical Systems
Focus on mastering Ohm’s Law for quick calculations of resistance, voltage, and current. Remember that voltage equals current multiplied by resistance (V = IR). This formula applies universally in analyzing basic setups.
- In a parallel configuration, remember that the total resistance is found by the reciprocal sum: 1/R_total = 1/R1 + 1/R2 + …
- For series connections, the resistance is simply the sum of all individual resistances: R_total = R1 + R2 + …
Be prepared to convert between power, current, and voltage. Use the formula P = VI to solve for power, where P is power in watts, V is voltage in volts, and I is current in amperes.
- For any circuit, apply the power formula to confirm the total energy consumption or generation.
- Note: Power loss can be calculated using the formula P_loss = I²R, which is useful in identifying efficiency losses.
In reactive circuits, pay attention to the phase relationship between voltage and current. Reactance (X) will affect the phase angle between them, leading to a lag or lead depending on whether inductive or capacitive components are present.
- For inductors, the reactance increases with frequency: X_L = 2πfL
- For capacitors, reactance decreases with frequency: X_C = 1 / (2πfC)
For resonant circuits, where inductance and capacitance interact, the resonance frequency can be found using the formula: f_res = 1 / (2π√(LC)).
Always check for short circuits and open circuits in real-world scenarios to ensure no unintended paths disrupt the setup.
Understanding Ohm’s Law: Calculating Voltage, Current, and Resistance
To calculate voltage, current, or resistance in a circuit, apply Ohm’s Law: V = I × R. This relationship allows you to determine any of the three variables when two are known.
Voltage (V) is the potential difference that drives current through a conductor. To calculate voltage, multiply current (I) by resistance (R). For example, if the current is 2 amps and the resistance is 10 ohms, the voltage is 20 volts (V = 2 × 10).
Current (I) is the flow of charge per unit time. To find the current, rearrange the formula to I = V / R. If the voltage is 20 volts and the resistance is 10 ohms, the current is 2 amps (I = 20 / 10).
Resistance (R) is the opposition to the flow of current. To find resistance, use R = V / I. For instance, with a voltage of 20 volts and a current of 2 amps, the resistance is 10 ohms (R = 20 / 2).
In each calculation, ensure units are consistent. Voltage should be in volts (V), current in amperes (A), and resistance in ohms (Ω).
How to Solve Series and Parallel Circuit Problems
To solve problems involving series and parallel networks, follow these steps for each type of setup:
Series Configuration:
In a series layout, resistances (R) simply add up. Use the formula:
| Total Resistance (Rtotal) | = R1 + R2 + … + Rn |
For current (I) and voltage (V), the same current flows through every component, so the total voltage (Vtotal) across the setup is the sum of the individual voltages:
| Total Voltage (Vtotal) | = V1 + V2 + … + Vn |
Parallel Configuration:
In a parallel arrangement, the total resistance is found using:
| 1 / Rtotal | = 1 / R1 + 1 / R2 + … + 1 / Rn |
For voltage, each branch experiences the same voltage, so the total voltage (Vtotal) is equal to the voltage across any one resistor:
| Total Voltage (Vtotal) | = V1 = V2 = … = Vn |
Steps for solving problems:
- Identify whether the network is series or parallel.
- Apply the correct formulas for resistance, voltage, and current based on the configuration.
- For series, calculate the total resistance and use Ohm’s Law to determine current and voltage across each component.
- For parallel, compute the reciprocal of total resistance, then find the current and voltage accordingly.

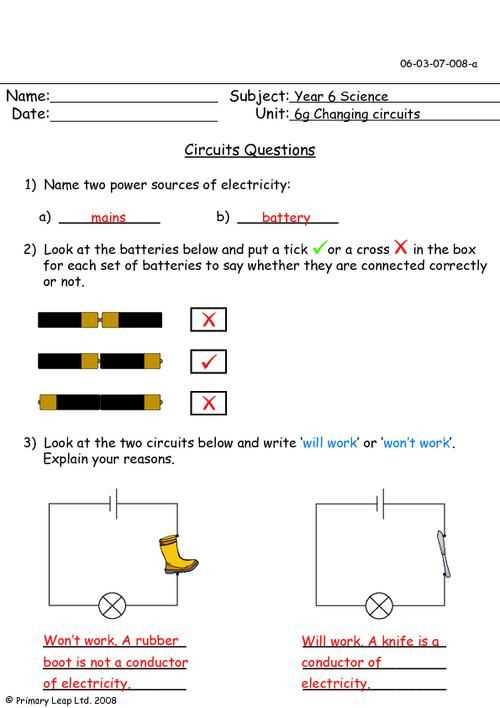

Interpreting Circuit Diagrams for Practical Test Questions
Focus on identifying key components: resistors, capacitors, transistors, and power sources. Recognize the symbols used to represent these elements and understand their placement within the layout. For instance, a zig-zag line typically indicates a resistor, while parallel lines may represent capacitors.
Pay attention to the orientation of components. In a voltage divider, for example, the resistors should be connected in series with the power supply, and the output voltage is taken from the junction between them. The direction of current flow is also crucial–current flows from the positive terminal to the negative terminal of the power supply unless otherwise specified.
Verify connections carefully. Often, tests will include diagrams where a component might be shown in an incorrect orientation or not connected properly. Check for open or short circuits and ensure that nodes are correctly linked. A common mistake involves overlooking a ground connection or misinterpreting the path of current.
Use Ohm’s Law for calculations. You’ll frequently need to compute current, voltage, or resistance in various sections. If two resistors are in series, their total resistance is the sum of their individual resistances; if in parallel, use the formula for parallel resistors: 1/R_total = 1/R_1 + 1/R_2. These calculations are fundamental for solving questions involving circuit behavior.
Identify the function of each component based on its arrangement. A transistor, for example, can act as a switch or amplifier depending on its configuration. Recognizing these roles is key to understanding how the circuit operates as a whole.
Consider the source’s voltage and the load connected to the circuit. Ensure that the voltage ratings are appropriate for the components involved. Over-voltage conditions can damage sensitive components, while insufficient voltage can prevent the circuit from functioning correctly.
Understand the concept of current division. In parallel circuits, current divides between branches inversely proportional to the resistance in each path. This principle will help you analyze current distribution in more complex diagrams.
Applying Kirchhoff’s Voltage and Current Laws in Practice
To solve a network using Kirchhoff’s laws, first identify all loops and junctions. Start by labeling every element in the system with its current direction and voltage polarity. Apply Kirchhoff’s Current Law (KCL) at every node: the sum of currents entering a junction equals the sum of currents leaving. This ensures current conservation at each point.
Next, use Kirchhoff’s Voltage Law (KVL) for each independent loop. Assign voltage drops and rises across each component in the loop, ensuring that the total voltage around any closed path equals zero. Pay attention to the sign conventions: a voltage drop (across a resistor or component in the direction of the current flow) is negative, while a rise (opposite the current flow) is positive.
When combining both laws, you’ll typically end up with a system of linear equations. Solve for unknown currents and voltages by using substitution or matrix methods. For complex systems, consider using tools like mesh or nodal analysis to simplify calculations.
Verify your results by checking if they satisfy both KCL and KVL across all components and nodes in the network. If any discrepancy arises, reassess your node labels, current directions, and voltage assumptions to ensure consistency.
Analyzing Power in Electrical Networks
Power dissipation in components can be calculated using the formula P = IV, where I is the current and V is the voltage across the element. For resistors, P = I²R or P = V²/R, depending on which values are more accessible. When analyzing series connections, the total power is the sum of individual powers of each element. In parallel configurations, each branch has its own power calculation based on the voltage and current of that particular branch.
For reactive components like inductors or capacitors, the power is not dissipated but temporarily stored and released. In an ideal inductor, the power alternates between the inductor and the source, and the average power is zero. Capacitors similarly exhibit reactive power, with energy stored during charging and released during discharging. To calculate instantaneous power for AC systems, use P = VI * cos(φ), where φ is the phase difference between voltage and current. This formula reflects the real power being transferred, with reactive power being determined by the imaginary component of the complex power.
In more complex scenarios involving combinations of reactive and resistive elements, calculate total impedance and apply Ohm’s law to find the current. Then use the current value to determine the voltage drop across each element, leading to accurate power predictions. Pay attention to the power factor, as it can significantly affect the real power delivered to the load. A power factor less than 1 means some power is wasted as reactive power, reducing the system’s efficiency.
Identifying Common Mistakes in Circuit Analysis and Troubleshooting
Always double-check component values before starting. Incorrect resistor, capacitor, or inductor ratings can cause malfunction and skew results. Verify component specifications against your schematic to avoid errors in calculations.
Ensure correct polarity when connecting components. Misplacing diodes, transistors, or electrolytic capacitors can result in circuit failure or damage to components.
Pay attention to grounding. A floating or improperly grounded node can lead to unstable behavior and inaccurate measurements. Check all connections to ground before powering the system.
Check for shorts between power rails and signal paths. Even a tiny conductive bridge can create significant issues, especially in complex setups. Inspect every connection closely to prevent unexpected current flow.
Incorrect use of multimeters is common. Set your meter to the appropriate mode–voltage, current, or resistance–before making measurements. Accidentally measuring current on a voltage setting can damage both the meter and components.
Misinterpreting voltage drops can lead to incorrect assumptions about the system. Always account for the total voltage across components in a series connection and ensure the sum matches the power supply’s output.
In high-frequency designs, be mindful of parasitic inductances and capacitances. These can alter the behavior of the system in unexpected ways, especially in oscillators or high-speed signals.
Be aware of component tolerances. A resistor’s tolerance can affect the performance of the entire setup. Consider worst-case scenarios when designing to account for this variation.
Test at different stages of assembly. Isolating sections of the system and verifying functionality incrementally can help identify issues early on, making troubleshooting more manageable.
Lastly, avoid jumping to conclusions too quickly. It’s easy to assume a faulty component when the issue could be elsewhere, such as a poor solder joint, broken wire, or incorrect measurement technique.
Using Multimeters to Measure Key Parameters
To obtain accurate readings, always start by selecting the proper mode on your multimeter: voltage (V), current (A), or resistance (Ω). Misconfiguration can result in incorrect readings or damage the device.
- Measuring Voltage: Set the multimeter to DC or AC voltage mode, depending on the source type. Insert the red probe into the VΩma socket and the black probe into the COM socket. Touch the probes to the two points where the voltage needs to be measured. Ensure proper contact to avoid fluctuations.
- Measuring Current: Switch the multimeter to the current mode (A). For low current measurements, use the lower range setting to ensure precision. Place the multimeter in series with the component or wire carrying the current. Always break the circuit to insert the meter, as current flows directly through the meter.
- Measuring Resistance: Change the multimeter to the resistance mode (Ω). Disconnect power from the circuit before testing resistance to avoid false readings or damage to the multimeter. Touch the probes to both ends of the resistor or component being tested.
Check the multimeter’s range setting before taking any reading to ensure it is within the expected value. If uncertain, select a higher range and gradually lower it to avoid overloading the meter.
- When measuring resistance, if the value is infinite, the component may be open or defective.
- For current measurements, never attempt to measure high-current devices without the proper fuse rating in your multimeter. Doing so can cause a short circuit or damage to the tool.
Always read the multimeter’s display slowly to ensure accurate results. Calibration of your multimeter periodically is recommended to maintain measurement precision.
How to Approach Time-Dependent Problems (AC Networks)
Focus on converting time-varying sources to phasor form to simplify calculations. For sinusoidal inputs, express voltages and currents as complex exponentials using Euler’s formula. Recognize the need to compute impedance for inductors and capacitors in the frequency domain: for inductors, (Z_L = jomega L), and for capacitors, (Z_C = frac{1}{jomega C}). This allows for a straightforward analysis using Ohm’s law and Kirchhoff’s rules in the frequency domain.
Apply phasor analysis, and use impedance as a replacement for resistive elements when working with reactive components. This reduces time-dependent behavior to algebraic manipulation. Solve for the steady-state response first, ensuring that initial conditions or transient effects are disregarded in AC steady-state analysis. Time-domain solutions can be retrieved by converting the result back from phasor form, applying inverse Fourier transforms if necessary.
Use the concept of reactance for frequency-dependent behavior, which directly impacts voltage and current relationships. For time-varying sources, recognize the phase shifts between voltage and current, and calculate the phase difference using the impedance values. Ensure to account for resonance in systems involving inductance and capacitance, where the system’s impedance can minimize or maximize depending on the frequency.
Check for any non-sinusoidal sources, as they may introduce harmonic components that require Fourier series decomposition. This lets you break down the signal into its sinusoidal components for easier handling. For complex setups, apply network theorems like Thevenin’s or Norton’s to reduce the system to simpler equivalent models, allowing for easier analysis of the time-dependent behavior.
