Chemistry Unit 4 Review Guide for Bond Types Structure Polarity and Practice

Prioritize electron-movement rules to classify interactions between atoms with accuracy. Focus on comparing charge transfer versus sharing, using specific numerical electronegativity gaps (for example, values above 1.7 usually signal full transfer). This approach removes guesswork and anchors each classification in measurable data.

Check structural diagrams by verifying octet completion, counting valence electrons twice, then matching totals with known stable patterns. For example, oxygen-based groups typically require two shared pairs, while nitrogen-based groups require three. Using these fixed patterns prevents structural miscounts and supports quick error detection.

Evaluate shape predictions by applying repulsion rules to each region of electron density. Distinguish between bonding groups and lone pairs, then map them to defined spatial arrangements such as trigonal planar or tetrahedral. This process provides a reliable pathway for predicting polarity, dipole direction, and interaction strength across molecules.

Core Concepts for Mastering Atomic Interaction Topics

Verify interaction type by comparing electronegativity values: differences above 1.7 usually indicate full electron transfer, while smaller gaps indicate sharing. Applying numeric thresholds removes ambiguity and supports consistent classification.

Check electron-count accuracy by constructing diagrams with total valence numbers confirmed through double-counting. For oxygen-based groups, expect two shared pairs; for nitrogen-based groups, expect three. These fixed patterns help prevent structural errors.

Use shape predictions based on repulsion rules to determine dipole direction. Lone pairs compress angles more strongly than shared pairs, shifting geometry toward bent or trigonal pyramidal forms. This shift alters polarity, which directly influences intermolecular force strength.

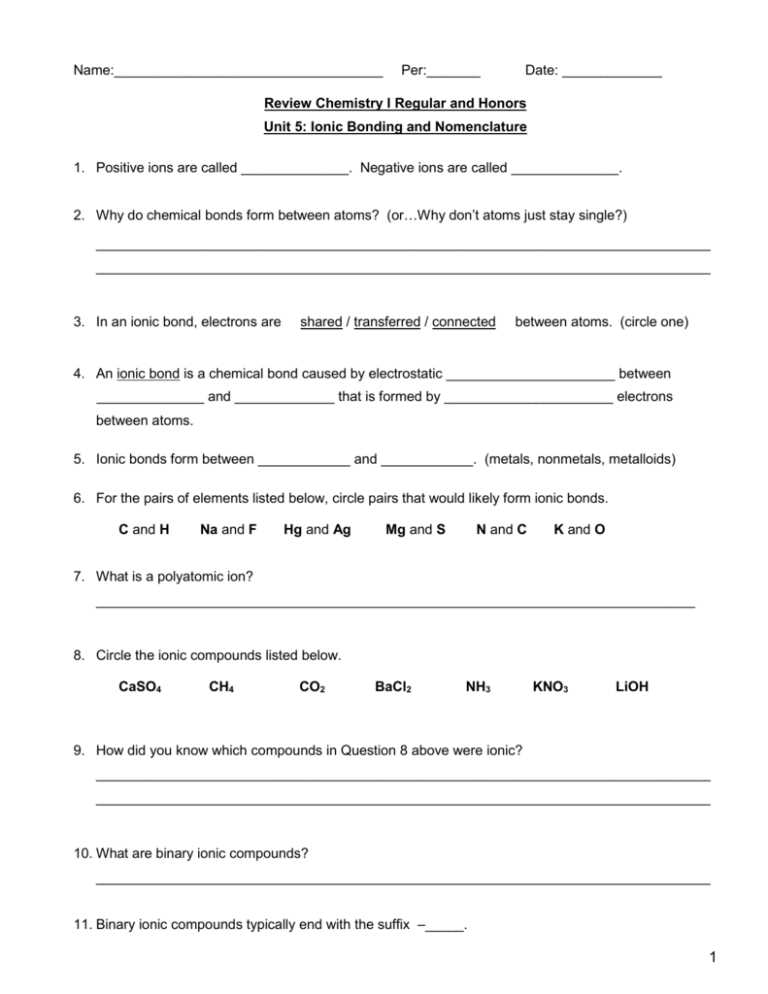

Distinguishing Ionic vs Covalent Bonds Through Electron Transfer Patterns

Use electronegativity gaps above 1.7 to classify the interaction as dominated by electron relocation; values below this threshold indicate shared-pair formation. This numeric cutoff prevents mislabeling mixed-character pairs.

Confirm transfer-driven linkage by identifying complete electron loss from a low-EN atom and full gain by a high-EN partner. Shared-pair linkage shows partial shifts only, with both atoms retaining comparable electron density.

Track charge formation directly: full transfer generates discrete ions with stable ratios, while shared-pair arrangements produce neutral groups exhibiting directional electron regions. Checking these patterns removes ambiguity in borderline cases.

Predicting Bond Polarity Using Electronegativity Differences

Apply a numeric threshold of 0.4 to classify non-polar interactions and values above this mark to identify partial charge separation. This prevents misreading pairs with subtle electron shifts.

Use structured comparison to maintain consistent classification:

• Calculate the absolute gap between the two electronegativity values.
• Assign polarity direction toward the atom with the higher value.
• Verify whether the resulting dipole aligns with the molecular geometry, since orientation can cancel or reinforce charge separation.

1. ΔEN <= 0.4 → minimal electron shift → non-polar.
2. 0.5–1.7 → uneven electron distribution → polar.
3. > 1.7 → dominant electron relocation → strong dipole with near-ionic character.

Use these numeric bands to avoid ambiguity in mixed-character pairs and maintain consistent polarity assignments across structurally similar compounds.

Determining Molecular Shape with VSEPR-Based Scenarios

Assign electron-pair regions using the total count of shared pairs and lone pairs around the central atom; this prevents misclassifying geometries with hidden repulsion patterns.

Use precise numeric cases to avoid ambiguous interpretations:

Two regions: linear arrangement with ~180° spacing, unaffected by lone pairs due to the absence of additional repulsive zones.

Three regions: trigonal planar if all positions contain shared pairs; introduce one lone pair and the structure adjusts to a bent layout with angles near 120°.

Four regions: tetrahedral baseline; insertion of one or two lone pairs converts it to trigonal pyramidal or bent due to extra repulsive influence.

Five regions: trigonal bipyramidal, where lone pairs occupy equatorial positions to minimize repulsion, generating shapes such as seesaw or T-shaped.

Six regions: octahedral core, shifting to square pyramidal or square planar when lone pairs replace axial or planar sites.

Apply these structured patterns to map any electron-pair arrangement directly to its corresponding three-dimensional layout without relying on memorized labels.

Identifying Bond Strength Trends from Periodic Table Data

Compare atomic radii across rows and columns to estimate interaction strength; smaller radii correlate with shorter distances between nuclei and higher energy requirements to separate paired atoms.

Use horizontal patterns first: moving left to right, shrinking radii increase overlap of shared electrons, producing stronger links. This explains why F–F is weaker than Cl–Cl despite fluorine’s high pull on electrons; the tiny F–F distance forces strong repulsion between lone pairs.

Apply vertical patterns next: descending a group increases atomic size, reducing orbital overlap and lowering energy needed for separation. For example, H–I is considerably weaker than H–Cl due to extended distance between nuclei.

Account for multiple-shared-pair situations: double and triple connections require greater energy to break than single ones, driven by increased electron density between atoms.

Use these numeric tendencies to rank strengths quickly: shorter distance → stronger interaction; increased electron sharing → higher energy demand; heavier group members → weaker links.

Evaluating Lewis Structures for Stability and Octet Compliance

Check total valence electrons first to prevent misallocation; incorrect starting counts lead to unstable layouts. Use the sum from all participating atoms and verify parity for species carrying charge.

Place the element with the lowest pull on electrons in the center, except for hydrogen, which never occupies that position. This supports correct distribution of shared pairs.

• Confirm each surrounding atom reaches an eight-electron arrangement, except hydrogen, which requires only two.
• Shift lone pairs into shared positions if an atom remains underfilled after the initial placement, forming double or triple connections when needed.
• Evaluate formal charges: aim for zeros when possible, with negative charge preferentially located on elements with higher pull on electrons.
• Reject structures that place expanded shells on elements in the second row; only elements in the third row and beyond may exceed eight electrons.

For reference material and verified examples of valid layouts, consult:

https://www.khanacademy.org/science/chemistry/chemical-bonds/lewis-dot-structures

Classifying Intermolecular Forces in Sample Molecules

Identify dipole–dipole attraction first by checking for uneven charge distribution; any structure with a permanent dipole such as HCl or SO₂ exhibits this interaction clearly.

Assign hydrogen-linked interactions only when H is bound to N, O, or F; pairs like HF, NH₃, and H₂O demonstrate these stronger contacts through localized high-pull atoms.

Apply London dispersion forces to all species, with stronger effects in larger or more polarizable atoms such as I₂, Xe, or long-chain hydrocarbons.

Separate species into categories by using this sequence:

• Only temporary interactions: Non-polar molecules like CH₄, Cl₂, or CO₂.
• Permanent dipoles: Polar molecules without N–H, O–H, or F–H links, such as CH₂Cl₂ or SO₂.
• Hydrogen-linked attraction: Compounds with N–H, O–H, or F–H connections like HF or NH₃.

Applying Hybridization Rules to Common Structural Examples

Assign sp mixing when a central atom forms two regions of electron concentration; CO₂ and HC≡CH fit this pattern through one linear axis and paired pi networks.

Use sp² when three regions control the layout; BF₃ and CH₂O demonstrate this with one trigonal arrangement and one unpaired pi segment anchored in a planar frame.

Apply sp³ to structures showing four regions; CH₄, NH₃, and H₂O illustrate this through either full link sets or a mix of link sets and lone segments.

Check resonance-stabilized systems separately; species like NO₃⁻ or CO₃²⁻ maintain sp² mixing despite varied drawings because electron density stays distributed in a trigonal field.

Solving Practice Items on Bond Energy Calculations

Subtract total formation values of created links from the sum of broken-link values to obtain the net energy change; this avoids sign errors and keeps each step numeric.

Use tabulated data such as H–H ≈ 436 kJ/mol, Cl–Cl ≈ 243 kJ/mol, C–H ≈ 413 kJ/mol, and O=O ≈ 498 kJ/mol to assemble each expression. Combine them strictly by counting occurrences in the balanced equation.

Check a sample case: for H₂ + Cl₂ → 2 HCl, combine 436 kJ/mol (H–H) and 243 kJ/mol (Cl–Cl) as broken links, then subtract 2 × 431 kJ/mol for formed H–Cl links. The result – about −183 kJ – signals a release of energy.

Recalculate any scenario that produces a positive sign for a known exothermic step; sign inversion usually means a swapped term or a missing coefficient in the formed-link segment.
