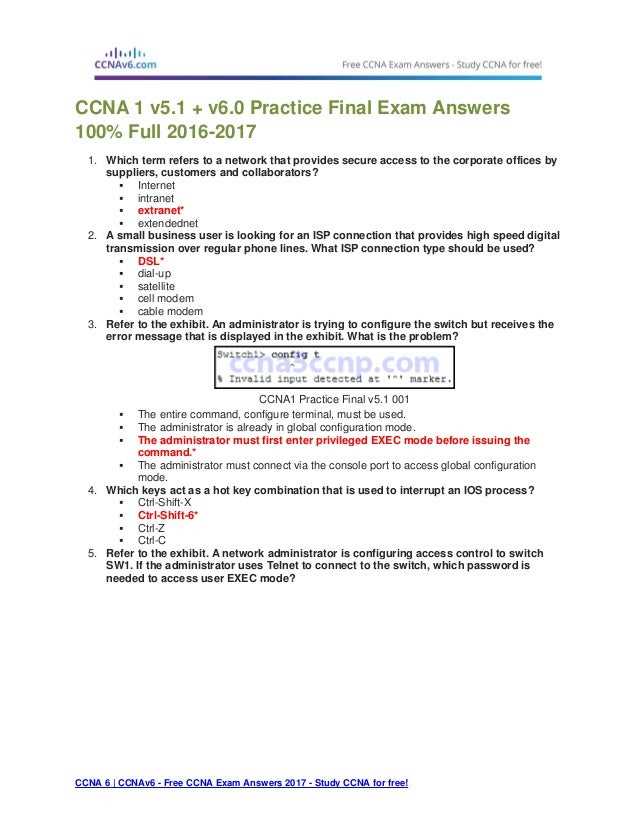

Key Concepts and Study Tips for CCNA Module 3 Final Exam

The key to passing the networking certification is understanding the core topics and practicing hands-on configuration. Focus on mastering routing protocols like RIP and OSPF, which are commonly tested. Be ready to configure static routes and troubleshoot common issues such as incorrect IP configurations and network connectivity failures.

Another critical area involves VLAN setup and troubleshooting. Pay attention to the proper configuration of network devices, including switches and routers. Make sure to understand how to work with IP addressing and how DHCP is utilized in a routed environment.

Don’t overlook Access Control Lists (ACLs), as they frequently appear in questions. Learn the different types of ACLs, how they impact traffic flow, and how to configure and troubleshoot them. By knowing these concepts inside and out, you’ll be ready to tackle the practical scenarios you’ll face in the exam.

Understanding Key Concepts for the Networking Assessment

When preparing for the networking test, focus on mastering IP addressing and subnetting. Be prepared to calculate subnet masks and identify valid IP ranges. Practice creating subnet tables to ensure accuracy under time pressure.

Routing protocols will appear frequently in questions, so make sure you understand both distance-vector and link-state protocols. Study how to configure and troubleshoot RIP and OSPF, and understand the concept of convergence.

Know how to configure network devices such as routers and switches. Ensure you are familiar with basic configurations like assigning IP addresses, configuring routing protocols, and setting up VLANs. Make sure to review how VLANs improve network performance and security.

Access Control Lists (ACLs) are a crucial part of the exam. Understand how to create and apply standard and extended ACLs, and how they filter network traffic based on IP addresses or protocols. Troubleshooting ACL misconfigurations is a common question type.

Hands-on practice is key. Configure a small network with multiple devices and practice troubleshooting connectivity issues. Familiarize yourself with tools such as ping, tracert, and show commands to diagnose problems and verify network configurations.

Understanding the Network Layer in Networking Protocols

Focus on the core functions of the network layer, which include routing, packet forwarding, and addressing. It is responsible for determining the path that data takes across multiple networks. Understanding how routing protocols like OSPF and RIP interact with the network layer is critical.

The Internet Protocol (IP) operates at this layer. It assigns logical addresses to devices and ensures that packets are routed between devices, even if they are on different networks. Study how both IPv4 and IPv6 address structures work, as well as how routers use these addresses to determine the best path.

In practical terms, configuring a router to perform packet forwarding and using routing tables is fundamental. Make sure to understand the differences between static and dynamic routing, and how routers communicate within a network to share routing information. Keep in mind that the network layer is integral to how devices on different segments of a network connect.

For more detailed study, refer to Cisco’s official documentation on networking fundamentals. Check out their resources at: Cisco Networking Solutions.

Common Routing Protocols Covered in Networking Courses

Understand the key routing protocols that ensure data reaches its destination efficiently. Focus on three primary types: RIP, OSPF, and EIGRP.

RIP (Routing Information Protocol) is a distance-vector protocol that uses hop count as its metric. It’s simple to configure and works well in small to medium-sized networks, but it has limitations like a maximum hop count of 15.

OSPF (Open Shortest Path First) is a link-state protocol that provides more scalability and flexibility compared to RIP. It uses the Dijkstra algorithm to calculate the shortest path and is more suitable for larger networks. It’s important to understand how OSPF areas are structured to prevent excessive routing updates.

EIGRP (Enhanced Interior Gateway Routing Protocol) is a hybrid routing protocol developed by Cisco. It combines features of both distance-vector and link-state protocols. EIGRP uses metrics like bandwidth and delay to calculate the best path, providing faster convergence and better stability in dynamic networks.

Learn how each protocol behaves in various network topologies, how to configure them on routers, and how they interact with one another in different scenarios. Knowing when and where to use each protocol is crucial for network optimization and troubleshooting.

How to Configure and Troubleshoot Static Routes

To configure a static route, use the command line interface on a router. Specify the destination network, subnet mask, and next-hop address. Here’s an example of the command syntax:

Router(config)# ip route

For instance, to configure a route to the network 192.168.2.0/24 with a next-hop address of 192.168.1.2, use the following command:

Router(config)# ip route 192.168.2.0 255.255.255.0 192.168.1.2

This command tells the router to forward traffic destined for 192.168.2.0/24 through the next-hop address 192.168.1.2. Ensure that the next-hop address is reachable before configuring the route.

Troubleshooting Static Routes: When troubleshooting static routes, check the following:

• Connectivity: Ensure that the next-hop address is reachable. Use ping to verify connectivity to the next-hop address.
• Route Configuration: Use the show ip route command to verify that the route is correctly configured and present in the routing table.
• Subnet Mask: Ensure that the subnet mask is correctly configured to match the destination network.
• Routing Table: Check if the static route is being overridden by dynamic routing protocols.
• Interface Status: Verify that the interface connected to the next-hop is up and operational using the show interface command.

If you cannot reach a destination after configuring the static route, use the following table to help identify common issues:

By following these troubleshooting steps and commands, you can quickly identify and resolve issues with static routing configurations.

Key Differences Between RIP and OSPF Protocols

RIP (Routing Information Protocol) and OSPF (Open Shortest Path First) are both widely used routing protocols, but they differ significantly in their operation, scalability, and efficiency. Understanding these differences is crucial for effective network design and troubleshooting.

1. Protocol Type: RIP is a distance-vector protocol, whereas OSPF is a link-state protocol. RIP determines the best path based on hop count, whereas OSPF uses the state of each link in the network to make routing decisions.

2. Convergence Speed: RIP has slower convergence times due to its periodic updates and distance-vector nature. OSPF, on the other hand, has faster convergence due to its link-state updates and the use of the Dijkstra algorithm to calculate the shortest path.

3. Maximum Number of Hops: RIP has a maximum hop count of 15, limiting the size of networks where it can be effectively used. OSPF supports much larger networks, with no predefined hop limit, making it more scalable for large and complex topologies.

4. Update Mechanism: RIP sends full routing tables periodically (every 30 seconds), which can increase network load. OSPF only sends updates when there is a change in the topology, making it more efficient in terms of bandwidth usage.

5. Metric Used: RIP uses hop count as its metric, which doesn’t account for link speed or other factors that affect network performance. OSPF uses cost as its metric, which is based on the bandwidth of the links, allowing for more optimal routing decisions.

6. Hierarchical Design: OSPF supports hierarchical routing with areas, allowing the network to be segmented into multiple areas for better scalability and easier management. RIP does not have this capability, leading to less efficient routing in large networks.

7. Network Size and Scalability: Due to its limited hop count and less efficient update mechanism, RIP is suited for smaller networks. OSPF, however, can handle much larger and more complex networks with multiple routers and links.

8. Route Summarization: OSPF supports manual route summarization, which helps reduce routing table size and network overhead. RIP has limited support for route summarization, and it is not as flexible as OSPF in this regard.

9. Authentication: OSPF supports stronger authentication methods, such as MD5, to secure routing updates. RIP only supports simple password authentication, which is considered less secure.

10. Resource Usage: OSPF requires more memory and CPU resources than RIP due to its more complex calculations and storage of link-state information. RIP is lightweight and requires fewer resources, making it suitable for small devices and less complex networks.

In conclusion, while RIP is suitable for smaller, less complex networks, OSPF is preferred for larger, more scalable environments where faster convergence, efficient bandwidth usage, and better network management are required.

Configuring DHCP in a Routed Environment

To configure DHCP in a routed network, follow these steps:

1. Enable DHCP on the Router: First, you must enable the DHCP service on the router that will assign IP addresses. This can be done with the following command:

Router(config)# ip dhcp pool [POOL_NAME]

Replace [POOL_NAME] with your desired pool name. This creates a DHCP pool that will manage IP addresses.

2. Define Network and Subnet Mask: Specify the network and subnet mask for the DHCP pool. Use the following command:

Router(dhcp-config)# network [NETWORK_ADDRESS] [SUBNET_MASK]

Example:

Router(dhcp-config)# network 192.168.1.0 255.255.255.0

3. Define Default Gateway: Specify the default gateway (router) for the clients to reach external networks. Use the following command:

Router(dhcp-config)# default-router [GATEWAY_IP]

Example:

Router(dhcp-config)# default-router 192.168.1.1

4. Set DNS Servers: To provide DNS information to the clients, use this command:

Router(dhcp-config)# dns-server [DNS_SERVER_IP]

Example:

Router(dhcp-config)# dns-server 8.8.8.8

5. Define Lease Duration: The lease duration controls how long an IP address will be assigned to a client. This can be set with the following command:

Router(dhcp-config)# lease [DAYS] [HOURS] [MINUTES]

Example:

Router(dhcp-config)# lease 7 0 0

This sets the lease to 7 days.

6. Exclude IP Addresses: If there are IP addresses you want to reserve (e.g., for static devices), exclude them from the DHCP pool with this command:

Router(config)# ip dhcp excluded-address [START_IP] [END_IP]

Example:

Router(config)# ip dhcp excluded-address 192.168.1.1 192.168.1.10

7. Verify Configuration: After configuring the DHCP pool, use the following command to verify the settings:

Router# show ip dhcp pool

This command displays the details of the DHCP pool and active leases.

8. Troubleshooting DHCP: If clients aren’t receiving IP addresses, check the following:

• Ensure the DHCP service is enabled on the router.
• Check if there is a valid IP address range available.
• Verify that the router’s interface connected to the clients has an IP address.
• Use the show ip dhcp binding command to see if the router is assigning addresses correctly.

By following these steps, you can effectively configure and troubleshoot DHCP in a routed network environment.

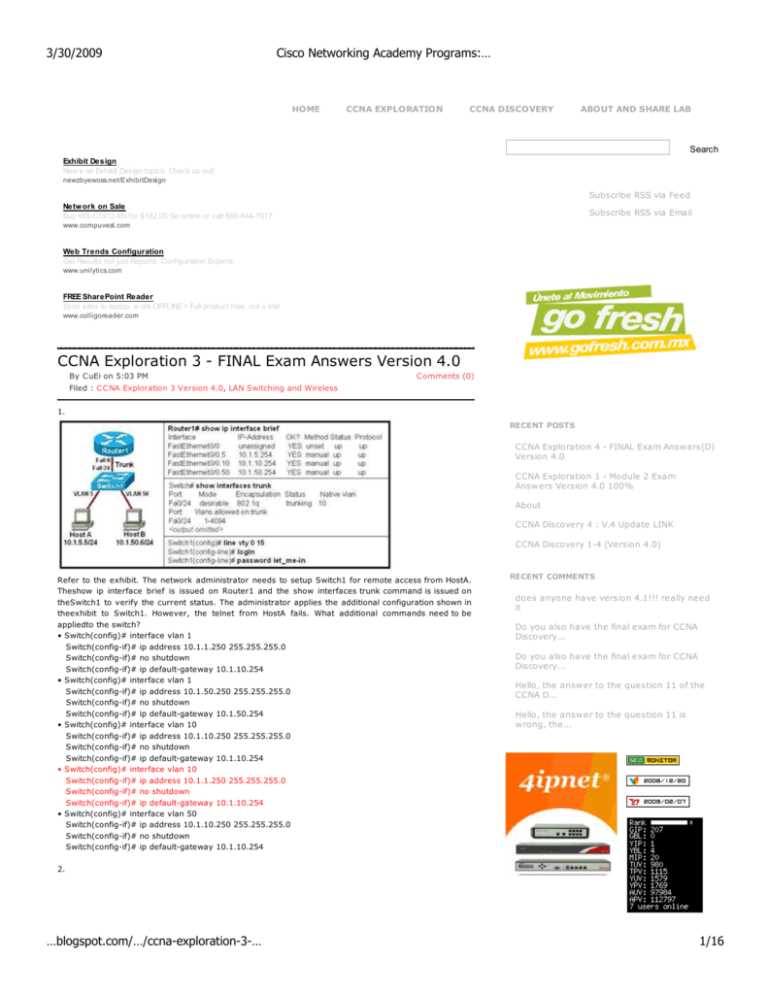

VLAN Setup and Troubleshooting for CCNA Exam

To configure a VLAN, follow these steps:

1. Create the VLAN: Start by defining the VLAN on the switch. Use the following command:

Switch(config)# vlan [VLAN_ID]

Example:

Switch(config)# vlan 10

This creates VLAN 10. You can repeat this for additional VLANs.

2. Name the VLAN: You can assign a name to the VLAN for easier identification:

Switch(config-vlan)# name [VLAN_NAME]

Example:

Switch(config-vlan)# name Sales

3. Assign VLAN to Ports: Once the VLAN is created, assign it to switch ports. Enter interface configuration mode:

Switch(config)# interface range fa0/1 - 24

Then, assign the VLAN:

Switch(config-if-range)# switchport access vlan [VLAN_ID]

Example:

Switch(config-if-range)# switchport access vlan 10

4. Verify VLAN Configuration: To check the VLAN configuration, use:

Switch# show vlan brief

This command lists all the VLANs and their associated ports.

5. Configure VLAN Trunking: If you need to extend VLANs across multiple switches, enable trunking on the links between them. First, enter interface configuration mode:

Switch(config)# interface fa0/1

Then, set the interface to trunk mode:

Switch(config-if)# switchport mode trunk

Verify the trunk configuration:

Switch# show interfaces trunk

VLAN Troubleshooting: If VLANs aren’t working as expected, follow these steps to troubleshoot:

• Check VLAN Configuration: Use the show vlan brief command to verify if VLANs are configured correctly on the switch.
• Verify Port Assignment: Ensure that the correct ports are assigned to the correct VLANs using the show interfaces switchport command.
• Check Trunk Links: If VLANs aren’t propagating across switches, ensure trunking is configured properly using the show interfaces trunk command.
• Verify VLAN Tagging: Ensure that the VLAN IDs are correctly tagged on all trunk links between switches.
• Check VTP (VLAN Trunking Protocol) Status: Verify if VTP mode is correct and VTP advertisements are working properly.

Common Issues:

• Misconfigured Trunk Ports: If VLANs aren’t passing through trunk links, check if the trunk ports are correctly set up.
• Wrong VLAN Assignment: If devices can’t communicate, verify if the correct VLAN is assigned to the port and if the VLAN exists on the switch.
• VTP Mismatches: Ensure all switches are using the same VTP domain name and password if you’re using VTP to manage VLANs.

Understanding and Configuring Access Control Lists (ACLs)

1. Define the Purpose of ACLs: Access Control Lists (ACLs) are used to filter network traffic based on IP addresses, subnets, or specific protocols. They allow or deny traffic according to configured rules.

2. Types of ACLs: There are two primary types of ACLs:

• Standard ACLs: These filter traffic based on the source IP address only.
• Extended ACLs: These can filter traffic based on source and destination IP address, protocol type, and ports.

3. Configure a Standard ACL: To create a standard ACL that allows or denies traffic from a specific source IP address, use the following steps:

Switch(config)# access-list 10 deny 192.168.1.0 0.0.0.255

This command blocks traffic from the network 192.168.1.0. To allow all other traffic, use the permit statement at the end:

Switch(config)# access-list 10 permit any

4. Configure an Extended ACL: For more detailed filtering, use extended ACLs. This example denies HTTP traffic from source IP 192.168.1.10 to destination IP 10.10.10.10:

Switch(config)# access-list 100 deny tcp 192.168.1.10 0.0.0.0 10.10.10.10 0.0.0.0 eq 80

5. Apply ACL to Interface: After creating an ACL, apply it to an interface. To restrict traffic entering an interface, use the following command:

Switch(config)# interface fastEthernet 0/1

Apply the ACL inbound:

Switch(config-if)# ip access-group 10 in

6. ACL Direction: ACLs can be applied to traffic in one of two directions:

• Inbound: Filters traffic entering the interface.
• Outbound: Filters traffic leaving the interface.

7. Check ACL Configuration: To verify ACL configuration, use the following command:

Switch# show access-lists

This displays all ACLs configured on the device.

8. Troubleshoot ACLs: When ACLs aren’t working as expected, check the following:

• Ensure the ACL is applied to the correct interface and direction.
• Check the order of rules–ACLs process rules from top to bottom.
• Ensure the ACL is not too restrictive, blocking legitimate traffic.
• Use the show access-lists and show ip interface commands to troubleshoot.

9. Implicit Deny: All ACLs end with an implicit deny statement, meaning any traffic not explicitly permitted will be blocked. Always ensure the last line in your ACL is a permit any rule to avoid unintentional blocking of traffic.

10. Best Practices: Keep the following guidelines in mind when working with ACLs:

• Use the most specific rules first, and the general rules later.
• Avoid using too many rules that could cause performance degradation.
• Test ACLs in a controlled environment before deploying them in production.

Common IP Routing Issues and How to Resolve Them

1. Incorrect Routing Table Entries: Incorrect or missing routes in the routing table can prevent proper communication between networks.

• Verify routes with show ip route.
• Add missing routes using ip route.

2. Route Redistribution Issues: Incorrectly redistributed routes between different routing protocols can cause routing loops or lost routes.

• Check redistribution configuration with show running-config.
• Ensure correct redistribution filters are applied to prevent loops.

3. Misconfigured Static Routes: Incorrect static routes can disrupt routing, especially if they conflict with dynamic routing protocols.

• Check static routes using show ip route static.
• Verify the correct next-hop IP address and subnet mask for static routes.
• Ensure routes do not overlap with dynamic routing entries.

4. Routing Loops: Routing loops occur when two or more routers repeatedly send packets in a circular path.

• Enable Split Horizon or Route Poisoning if using RIP to prevent loops.
• Check for inconsistent metric values that may cause incorrect routing paths.
• Review the routing protocol configuration for misconfigurations in timers.

5. Incorrect Subnet Masks: Mismatched subnet masks can lead to incorrect routing decisions, preventing hosts from reaching each other.

• Verify subnet masks using show ip interface brief.
• Check interfaces for correct subnet mask configuration.

6. Unreachable Networks: A network being unreachable could be due to a missing route or incorrect gateway configuration.

• Check the interface status with show ip interface brief.
• Verify the route with show ip route to ensure the network is reachable.

7. Access Control List (ACL) Restrictions: ACLs may block routing updates or traffic based on IP address or port filters.

• Check if ACLs are applied to routing interfaces using show access-lists.
• Ensure ACLs allow routing protocols to send and receive updates.

8. Routing Protocol Authentication Failures: Authentication issues between routers using protocols like OSPF or EIGRP can prevent route exchange.

• Verify authentication configuration using show running-config.
• Ensure the same authentication method and credentials are configured on both routers.

9. Metric Mismatches: Routing protocols like RIP, EIGRP, and OSPF rely on metrics to determine the best path. Incorrect metric values can lead to suboptimal routing.

• Check metric settings in routing protocol configuration.
• Use show ip protocols to review the routing protocol settings and adjust metrics as needed.

10. Interface Shutdown: A routing protocol may fail if the associated interface is administratively down.

• Verify interface status with show ip interface brief.
• Bring up the interface with no shutdown if it is down.

How to Interpret and Troubleshoot Routing Tables

1. Checking Routing Table Entries: To view the routing table, use the show ip route command. Each route entry includes a network, subnet mask, next-hop IP address, and the associated interface.

• Look for the destination network in the table and identify the next-hop address and outgoing interface.
• Verify if the network is reachable by examining the associated metrics and route type (e.g., static, OSPF, EIGRP).

2. Identifying Route Source: Routes in the table are classified by their source, which is indicated by a letter next to the route (e.g., O for OSPF, D for EIGRP, S for static). Understanding the source helps identify how a route was learned.

• If the route is learned dynamically, verify the protocol and ensure that the routing process is operating correctly.
• For static routes, check if the correct next-hop address or exit interface is configured.

3. Troubleshooting Missing Routes: If a destination is unreachable, ensure the route exists in the table. Use ping or traceroute to check connectivity.

• If the destination is missing, verify the routing protocol configuration or add a static route using ip route.
• For dynamic protocols, check if the router is participating in the correct routing domain (OSPF, EIGRP, etc.).

4. Route Prioritization: The routing table will contain multiple routes to the same destination. The router will select the best route based on metrics, with the lowest metric preferred.

• Verify the metrics associated with each route (e.g., hop count for RIP, cost for OSPF) to determine why a specific route is preferred.
• If necessary, adjust the metric or configure route redistribution for preferred routes.

5. Routing Loops and Inconsistent Routes: If packets are looping or never reach their destination, check for incorrect or redundant routes.

• Ensure that no conflicting routes exist in the table that could lead to a loop.
• Review route advertisement settings and route filters to prevent unwanted routes.

6. Verifying Route Validity: If a route is present but not functional, check the validity of the route by looking at the interface status using show ip interface brief.

• Ensure the interface for the route is up and properly configured.
• If the interface is down, bring it up with no shutdown.

7. Static Route Configuration Issues: Static routes might be misconfigured if the wrong next-hop address or subnet mask is used.

• Review the static route with show ip route static and verify the accuracy of the next-hop IP and network address.
• If the route is incorrect, adjust the static route using ip route with the correct parameters.

8. Verifying Routing Protocol Neighbors: If dynamic routing is not functioning, verify that routing protocol neighbors are established.

• For OSPF, use show ip ospf neighbor; for EIGRP, use show ip eigrp neighbors.
• If neighbors are down, check interface configurations, authentication settings, and protocol compatibility.

Testing and Verifying Network Connections

1. Check Physical Layer: Before testing network connectivity, verify that all physical connections are correct and secure. Use show ip interface brief to check the status of all interfaces. If an interface is down, check cables, switches, or routers.

• If an interface is administratively down, use no shutdown to enable it.
• If an interface is physically down, check the hardware connection or replace the cable.

2. Test Local Connectivity with Ping: Use the ping command to test basic connectivity. This will check if the device can reach other devices on the same subnet or connected network.

• Ping the loopback address (ping 127.0.0.1) to ensure the local IP stack is functioning.
• Ping the gateway to verify the router is reachable.
• If ping to the local device succeeds but external pings fail, check routing and gateway configurations.

3. Verify Routing Table: Use the show ip route command to verify the network routing table. Ensure the correct routes are in place for communication beyond the local subnet.

• If the destination network is missing from the table, check if the appropriate routing protocol is enabled or if a static route is configured.
• For dynamic routing, ensure the router is exchanging routing information with its neighbors.

4. Troubleshoot with Traceroute: Use traceroute to track the path packets take to reach a destination. This can help identify routing issues, delays, or points of failure in the network.

• If the trace fails at a specific hop, it indicates where the packet is being dropped or misrouted.
• Examine the intermediate routers or links for configuration issues, such as incorrect routing or ACLs blocking traffic.

5. Verify DNS Resolution: Test domain name resolution using the nslookup or dig command. If domain names fail to resolve, check DNS server configurations.

• Verify that the DNS server is reachable by pinging its IP address.
• Ensure the correct DNS server address is configured on the device.

6. Check ARP Table: Use show arp to check the Address Resolution Protocol table. This helps verify if the device has mapped the IP address to the correct MAC address for the destination.

• If no ARP entry exists for the destination IP, verify the device’s connectivity and the proper functioning of the local network.
• Clear the ARP cache if outdated entries are suspected using clear arp-cache.

7. Use Debugging for Advanced Troubleshooting: Use debugging commands such as debug ip routing or debug ip packet for in-depth troubleshooting.

• Use debugging commands cautiously as they can overwhelm the router’s CPU with output.
• Stop debugging with undebug all after troubleshooting is complete.

8. Verify Firewall and Access Control Lists (ACLs): If connectivity is limited, check if any ACLs or firewall rules are blocking traffic.

• Use show access-lists and show ip interface to verify ACL configurations.
• Ensure that the ACLs are applied to the correct interfaces and that no rules are blocking desired traffic.

Key Terminology You Must Know

1. IP Address: A unique identifier assigned to devices in a network. It is used for addressing and routing packets of data between devices.

2. Subnet Mask: Defines the network portion of an IP address. It allows routers to differentiate between local and remote networks.

3. Default Gateway: The device (usually a router) that routes traffic from a local network to other networks, such as the internet.

4. VLAN (Virtual Local Area Network): A logical grouping of devices in a network, segmented by function, department, or other criteria, even if they are not on the same physical switch.

5. Router: A device that forwards data packets between networks. It routes traffic from one IP network to another.

6. Switch: A device that connects devices within the same network, using MAC addresses to forward data to the correct destination.

7. Routing Table: A database on a router that stores routes to various network destinations. It determines the best path for forwarding data.

8. Static Routing: A manually configured routing method where specific paths are assigned for traffic to follow.

9. Dynamic Routing: A routing method where routers automatically exchange routing information to update the routing table.

10. ARP (Address Resolution Protocol): A protocol that maps an IP address to a MAC address in a local network.

11. ACL (Access Control List): A list of rules that control network traffic, allowing or denying specific traffic based on IP addresses, protocols, or ports.

12. NAT (Network Address Translation): A technique used to map a private IP address to a public IP address, typically used when accessing the internet from a private network.

13. DHCP (Dynamic Host Configuration Protocol): A protocol that automatically assigns IP addresses to devices on a network, eliminating the need for manual configuration.

14. DNS (Domain Name System): A system that translates human-readable domain names (e.g., www.example.com) into IP addresses.

15. Ping: A network utility used to test connectivity between devices on a network by sending ICMP Echo Request messages.

16. Traceroute: A tool used to trace the path of data packets from one device to another, displaying each hop along the way.

17. MTU (Maximum Transmission Unit): The largest size of a data packet that can be transmitted over a network without fragmentation.

18. TCP/IP (Transmission Control Protocol/Internet Protocol): The suite of protocols that underlies internet and network communication, providing data transmission and addressing standards.

19. BGP (Border Gateway Protocol): A protocol used to exchange routing information between different autonomous systems on the internet.

20. OSPF (Open Shortest Path First): A link-state routing protocol used to find the best path for data exchange within an autonomous system.

21. RIP (Routing Information Protocol): A distance-vector routing protocol used to determine the best path based on hop count.

22. Spanning Tree Protocol (STP): A protocol used to prevent network loops in Ethernet networks by creating a tree-like topology.

23. HSRP (Hot Standby Router Protocol): A Cisco redundancy protocol that provides high availability by allowing multiple routers to appear as a single gateway.

24. VPN (Virtual Private Network): A method of securely connecting remote devices to a network over the internet by encrypting traffic between the device and the network.

25. Collision Domain: A network segment where data packets can collide with each other, which typically occurs in networks using hubs or shared media.

26. Broadcast Domain: A network segment where a broadcast message can be received by all devices. Routers separate broadcast domains.

27. QoS (Quality of Service): A mechanism used to prioritize network traffic, ensuring that critical applications receive sufficient bandwidth and minimizing latency.

28. PoE (Power over Ethernet): A technology that allows Ethernet cables to carry electrical power to devices like IP phones and cameras, eliminating the need for separate power sources.
