CCNA 3 Chapter 6 Exam Solutions and Detailed Explanations

Focus on understanding subnetting and routing protocols. These are the core concepts tested in the practical portions of the material. Pay attention to how to configure devices and implement correct addressing schemes in real-world scenarios. The ability to accurately calculate subnets and apply IP addressing is critical for passing any relevant questions.

Another key area is troubleshooting. Develop a step-by-step approach for identifying common network issues. Familiarize yourself with routing tables, switch configurations, and the processes involved in resolving common connectivity problems. Practice diagnosing errors using the right commands and tools.

Keep in mind that practicing specific scenarios will help you internalize the commands and processes needed. Always double-check configurations and troubleshooting steps to avoid errors during assessments.

Key Topics to Focus on for Success in the Exam

Ensure you are comfortable with IP addressing schemes and subnetting. Know how to break down a network into subnets using both decimal and binary methods. Master the process of assigning IPs to devices correctly according to the subnet mask, and be prepared to calculate the network address, broadcast address, and range of valid hosts.

Another important area is understanding routing protocols like RIP, OSPF, and EIGRP. Be clear on their differences and how they work within a network. Practice configuring routing tables and applying dynamic routing protocols in simulated environments. Expect questions on how to troubleshoot routing problems effectively.

Don’t neglect the configuration and troubleshooting of devices. Ensure you understand the commands used to configure routers, switches, and PCs. Practice setting up VLANs, inter-VLAN routing, and IP routing. Be ready to identify and correct issues related to connectivity, network performance, or security based on device configurations.

Lastly, get familiar with the CLI commands for verifying configurations. Tools like “ping”, “traceroute”, “show ip route”, and “show running-config” will help you quickly diagnose issues during the test and real-life scenarios. Understanding how to use these tools effectively is key to resolving network problems swiftly.

Understanding Key Concepts in CCNA 3 Chapter 6

Focus on mastering the concepts of IP routing and subnetting. Understand how to break down a network into smaller subnets using subnet masks. Be able to determine the network address, broadcast address, and valid host range for each subnet. Practice converting between decimal and binary to calculate subnet boundaries efficiently.

Familiarize yourself with the different types of routing protocols such as RIP, OSPF, and EIGRP. Recognize the specific situations in which each protocol is most suitable and their respective configuration commands. Know how these protocols contribute to building a dynamic routing table and how they compare to each other in terms of efficiency and scalability.

Understand how to configure VLANs and inter-VLAN routing on network devices. Practice assigning devices to appropriate VLANs and configuring trunk links to allow communication between VLANs. Troubleshoot common VLAN and trunking issues to ensure seamless communication across devices in the network.

Master the use of diagnostic tools like “ping” and “traceroute”. These tools are invaluable for troubleshooting connectivity issues. Be prepared to interpret the results of these commands to identify network issues, such as incorrect routing or misconfigured devices.

Common Networking Issues Covered in Chapter 6 Exam

One common issue to address is misconfigured IP addresses. Ensure that the correct IP addressing scheme is applied across all devices, and double-check the subnet masks to avoid network miscommunication. Incorrect IP addressing can cause devices to be unreachable or fail to communicate with others on the network.

VLAN misconfigurations are another frequent problem. Pay close attention to the VLAN IDs assigned to switches and ensure that trunk links are properly configured. Incorrect VLAN assignments can lead to devices being placed in the wrong broadcast domain, causing traffic issues and connectivity failures between devices in different VLANs.

Routing problems also frequently arise. Verify that the correct routing protocols are enabled and properly configured on routers. Pay special attention to static routes and dynamic routing tables, as improper configurations can cause traffic to be misrouted or dropped. Familiarize yourself with routing protocol metrics and administrative distances to troubleshoot routing issues effectively.

Trunking issues often occur when the VLAN tags are not being passed correctly between switches. This can happen due to incorrect configuration of trunk ports or mismatched VLANs across connected devices. Ensure that the trunking protocol (such as 802.1Q) is properly configured to allow for the seamless transmission of multiple VLANs across a single link.

Another common issue is incorrect or missing default gateways on devices. Without a correct default gateway, devices on one network segment cannot communicate with devices outside their local network. Make sure that all devices are configured with the correct default gateway settings, especially when dealing with inter-network communication.

How to Solve Subnetting Problems in Chapter 6

To solve subnetting problems, start by identifying the network address and required subnet mask. Determine how many subnets or hosts are needed. Use the formula 2^n, where n is the number of borrowed bits, to calculate the number of subnets. The more bits you borrow, the more subnets you can create, but this reduces the number of hosts per subnet.

Next, convert the IP address and subnet mask to binary. This will help you visualize how the network and host portions of the address are divided. Once you have the binary representation, apply the subnet mask to the IP address to determine the network address for each subnet.

After determining the number of subnets, calculate the subnet increment. The increment is the number of addresses between the starting addresses of two consecutive subnets. This can be determined by finding the value of the least significant bit in the borrowed portion of the subnet mask and converting it back to decimal.

Once the subnets are created, determine the range of IP addresses within each subnet. The first address in the range is the network address, and the last address is the broadcast address. All addresses in between are valid host addresses.

Finally, check your work. Double-check the subnet mask, network address, and range of addresses for each subnet. Ensure that you have correctly calculated the available subnets and host addresses, and verify that no overlap occurs between subnets.

Configuring Routers and Switches for Chapter 6 Exam

Start by ensuring that the router and switch are connected and powered on. Access the device’s CLI (Command Line Interface) to begin configuration. Begin with basic settings, such as configuring the hostname, setting passwords for privileged and user modes, and securing console, vty, and auxiliary lines.

For routers, configure the interfaces with appropriate IP addresses. Use the following commands to enter interface configuration mode:

• Router> enable
• Router# configure terminal
• Router(config)# interface g0/0
• Router(config-if)# ip address 192.168.1.1 255.255.255.0
• Router(config-if)# no shutdown

After the interface IPs are set, verify the configuration with the show ip interface brief command.

For switches, begin by configuring the VLANs, especially for inter-VLAN routing. Assign the correct VLAN IDs to the respective ports using the following commands:

• Switch(config)# vlan 10
• Switch(config-vlan)# name Sales
• Switch(config)# interface range fa0/1 - 10
• Switch(config-if-range)# switchport mode access
• Switch(config-if-range)# switchport access vlan 10

To configure trunking between switches, use the following commands:

• Switch(config)# interface g0/1
• Switch(config-if)# switchport mode trunk
• Switch(config-if)# switchport trunk encapsulation dot1q

Once all configurations are in place, verify by using commands such as show vlan brief for VLAN information and show interfaces trunk to confirm trunking status.

Always save your configuration to ensure changes are not lost after a reboot:

• Router# write memory
• Switch# write memory

Practical Scenarios in CCNA 3 Chapter 6 Exam

In real-world network configurations, understanding how to handle routing protocols and subnetting is critical. One common scenario involves configuring a router to communicate across multiple subnets. Start by ensuring each interface on the router has the correct IP address and subnet mask.

For example, if you are asked to configure a router with two interfaces, you would use the following steps:

• Assign IP addresses to each interface, e.g., 192.168.1.1 255.255.255.0 and 192.168.2.1 255.255.255.0
• Enable the interfaces using no shutdown
• Verify the interfaces with show ip interface brief

In a scenario requiring subnetting, be prepared to calculate the subnet mask, network, and broadcast addresses. If you are given a subnet size requirement of 254 hosts, for example, the subnet mask would be 255.255.255.0. Use the ip address command to assign these addresses to router interfaces.

Another common case involves configuring VLANs on a switch. In this case, ensure that VLANs are properly assigned to switch ports. For instance:

• Create the VLAN: Switch(config)# vlan 10
• Assign the VLAN to specific interfaces: Switch(config)# interface range fa0/1 - 24
• Configure the switch ports as access ports: Switch(config-if-range)# switchport mode access
• Assign the correct VLAN to the ports: Switch(config-if-range)# switchport access vlan 10

If trunking is required between switches, configure the trunk port to allow multiple VLANs:

• Switch(config)# interface g0/1
• Switch(config-if)# switchport mode trunk
• Switch(config-if)# switchport trunk encapsulation dot1q

Once configured, always verify the settings with commands like show vlan brief and show interfaces trunk.

Finally, don’t forget to save your configuration to prevent losing any changes after a reboot:

• Router# write memory
• Switch# write memory

How to Approach Troubleshooting Questions in Chapter 6

When faced with troubleshooting scenarios, the first step is to gather as much information as possible about the issue. Identify the symptoms of the problem before proceeding with any configurations or commands. This approach helps in narrowing down the possible causes.

Follow these steps for effective troubleshooting:

1. Verify the Physical Layer: Start by checking the hardware connections. Ensure cables are properly connected and that devices are powered on. Use the show ip interface brief command to verify interface statuses.
2. Check IP Configuration: Ensure the devices have the correct IP address, subnet mask, and default gateway. Use ping and traceroute commands to check connectivity.
3. Verify Routing Table: Ensure the router’s routing table is correctly configured. Use the show ip route command to verify that routes are correctly learned and active.
4. Check VLAN Configuration: If the issue is related to VLANs, check the VLAN assignment on each port using show vlan brief. Verify that the ports are in the correct VLAN.
5. Test the Connectivity Between Devices: Ping from one device to another to check if the devices can communicate. If the ping fails, use traceroute to identify where the issue lies in the network path.

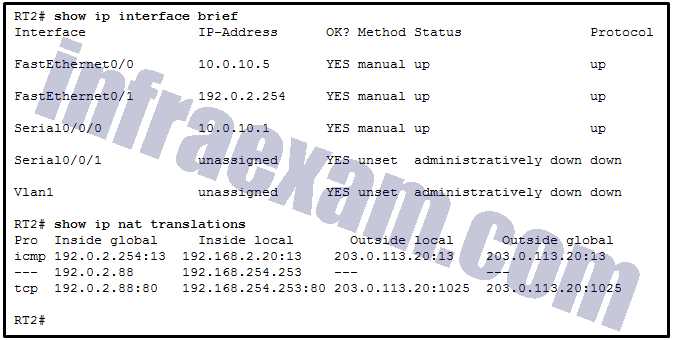

6. Verify NAT Configuration: If NAT is involved, check the NAT table using show ip nat translations to ensure the translations are correct.
7. Check Logs: Review device logs for any error messages or unusual activity. Use the show logging command to check for errors related to the issue.

Once you have identified the potential cause, apply the necessary configuration changes. After applying the fix, verify the solution by testing the connectivity again and checking the device logs.

Remember, always document your changes and the troubleshooting steps you took for future reference.

Reviewing IP Routing and Addressing in Chapter 6

Start by verifying that all devices are using the correct IP addressing scheme. Use the show ip interface brief command to check the IP address configuration on interfaces. Confirm that the network devices are in the correct subnets and that subnet masks match the intended address ranges.

To ensure proper routing, examine the routing tables using the show ip route command. This will allow you to check if routes are correctly learned and propagated across the network. If routes are missing, confirm that routing protocols are enabled and properly configured on routers.

When troubleshooting address assignments, check for address conflicts using the ping command to test connectivity between devices. Ensure that devices have unique IP addresses within their respective subnets to avoid conflicts.

If you’re working with static routing, verify that the static routes are correctly entered using the show running-config command. For dynamic routing protocols, verify the configuration of protocols like RIP, EIGRP, or OSPF to ensure they are properly exchanging routing information.

Don’t forget to check for any ACLs (Access Control Lists) that could block communication between devices. Use the show access-lists and show ip access-lists commands to check for any filtering rules that may be restricting traffic.

Finally, test connectivity across different subnets using the traceroute command to ensure packets are being forwarded through the correct path. Verify that any necessary NAT (Network Address Translation) configurations are applied if you are using public and private IP addressing schemes.

Common Mistakes to Avoid in Chapter 6

Avoid overlooking subnetting. Many struggle with correctly calculating the subnet mask, network address, and broadcast address. Make sure to practice subnetting problems before attempting to configure network addresses. Miscalculating these can lead to network issues.

Don’t neglect the verification of IP address configurations. Missing or incorrectly assigned IP addresses can cause communication failures between devices. Always double-check the IP address assignments on each interface.

Be careful with routing configurations. Ensure that routing protocols are enabled and configured correctly. Many candidates forget to configure routing updates or incorrectly configure static routes, which can disrupt network communication.

Check your VLAN configurations carefully. Failing to assign devices to the correct VLAN or missing VLAN trunking configurations can prevent communication between devices in different VLANs.

Watch out for Access Control List (ACL) misconfigurations. ACLs can block communication if not set up properly. Always verify the ACL settings to ensure they allow the necessary traffic between devices.

Do not assume that a router or switch is automatically aware of the correct network routes. Always ensure that routing tables are populated correctly by verifying the routing protocol configurations or static route entries.

Another common mistake is neglecting to check the physical connections. Verify all cables and interfaces are properly connected and functional, as physical layer issues can often be the cause of network failures.
