Complete Guide to CCNA 2 Chapter 3 Exam with Answer Explanations

If you’re preparing for networking tasks, mastering routing, addressing, and basic network configuration is key to success. Understanding how to set up IP addresses, subnets, and routing protocols will directly influence your performance in real-world networking tasks. For those looking to hone their skills, focusing on configuration exercises is a practical approach that reinforces theoretical knowledge.

One area where many learners struggle is routing table interpretation and troubleshooting network setups. To tackle this, break down each step systematically and practice with real-time scenarios. You’ll need to get comfortable with commands for static routing, OSPF, and access control lists (ACLs). The more you practice, the quicker you’ll recognize and fix errors during actual configurations.

Understanding subnetting is another area where students often get stuck. While the math can be tricky at first, regular practice will improve accuracy. Focus on working through several subnetting exercises to become more confident in your calculations. Once you’re comfortable with addressing, shift your focus to configuring routers and switches to reflect those IP assignments.

CCNA 2 Chapter 3 Exam Answers Guide

For success in this section, focus on mastering IP addressing and subnetting. Begin by reviewing the basic concepts of IP addressing, such as the differences between private and public addresses, and how to calculate subnet masks. Work through several subnetting exercises to ensure a strong grasp of this concept. Understanding CIDR notation and subnetting is crucial to answering questions related to network addressing.

When configuring routers, pay close attention to the configuration of both static and dynamic routes. The exam questions will often test your ability to configure routing protocols like RIP and OSPF, and to interpret routing tables. Practice configuring routers using real-world scenarios to reinforce your learning. Make sure you are comfortable with the command-line interface for configuring these protocols.

Security aspects of networking are also a significant part of this chapter. Be prepared to answer questions on basic security practices, such as implementing access control lists (ACLs) and securing router configurations. Review how ACLs control the flow of traffic within a network and how to apply them to both IPv4 and IPv6 addresses. Testing your understanding of access lists and security best practices is critical to passing this portion of the exam.

Finally, remember to carefully review and test your configurations. Often, small mistakes such as incorrect subnetting or misconfigured routing tables can lead to larger issues. Use a network simulator to test your configurations in a controlled environment before attempting the real-world implementation.

Understanding Key Networking Protocols Covered in Chapter 3

Focus on gaining a solid understanding of the following protocols commonly covered in this section: TCP/IP, RIP, OSPF, and ARP. These protocols form the backbone of networking and understanding their functionality is key to solving related questions on the test.

TCP/IP, the fundamental protocol suite for internet communication, consists of several layers such as the Link, Internet, Transport, and Application layers. Review how TCP/IP ensures reliable communication between devices over a network, with an emphasis on addressing, routing, and error checking.

RIP (Routing Information Protocol) is a distance-vector routing protocol that uses hop count to determine the best path for data. Understanding the RIP algorithm and its limitations, such as the maximum hop count of 15, is critical. Make sure to review how RIP v1 and RIP v2 differ, particularly in terms of routing table updates and support for classless inter-domain routing (CIDR).

OSPF (Open Shortest Path First) is a link-state routing protocol used for larger networks. It’s designed to be more efficient than RIP by using a more detailed database of the network topology. Study how OSPF uses Dijkstra’s algorithm for finding the shortest path and how it divides a large network into areas to improve routing efficiency.

ARP (Address Resolution Protocol) is a protocol used to map a 32-bit IP address to a physical MAC address within a local network. It is vital for ensuring that devices can find each other at the data link layer. Review the ARP process and the role of ARP tables in resolving IP address conflicts.

How to Configure Routers for Basic Network Setup

Begin by connecting the router to your network through the appropriate ports. Typically, this involves connecting the router’s Ethernet port to a switch or a modem.

Next, access the router’s configuration interface by typing the router’s IP address into a web browser. The default IP for most routers is usually 192.168.1.1 or 192.168.0.1. Log in with the default username and password, or use your custom credentials if they have been set.

Once logged in, configure the router’s interfaces:

• Assign an IP address to the router’s LAN interface (e.g., 192.168.1.1/24).
• Set the router’s default gateway to the IP address of your ISP or the next hop in your network.
• Set up DHCP (Dynamic Host Configuration Protocol) on the router to automatically assign IP addresses to devices in the network.

Configure routing protocols if required. For smaller networks, static routing might suffice. For larger networks, consider using dynamic routing protocols like RIP or OSPF. Ensure the appropriate routing protocols are enabled, and check that routing tables are correctly populated.

Set up NAT (Network Address Translation) to allow internal devices to communicate with external networks (e.g., the internet). This is done by configuring the router to translate private IP addresses to a public one.

Ensure security settings are configured to prevent unauthorized access. This includes setting up a strong password, disabling unused interfaces, and enabling firewall features.

Test the configuration by pinging from a device connected to the router. Verify that the router can communicate with the outside network and that the devices on your local network are receiving IP addresses correctly.

Setting Up IP Addressing for Subnetting Tasks

Identify the required number of subnets and host addresses per subnet. This will guide the choice of subnet mask and IP address allocation. For instance, if you need 8 subnets from a Class C network, a /27 subnet mask (255.255.255.224) will divide the network into 8 subnets.

Calculate the number of subnets available by adjusting the subnet mask. With a /27 mask on a Class C network, each subnet will have 32 IP addresses (30 usable for devices), as each subnet increments by 32 addresses.

Assign the network address to each subnet. The first IP in the range is reserved for the network, and the last IP is reserved for broadcast. The addresses in between can be assigned to devices on that subnet.

• Subnet 1: 192.168.1.0 – 192.168.1.31
• Subnet 2: 192.168.1.32 – 192.168.1.63
• Subnet 3: 192.168.1.64 – 192.168.1.95
• Subnet 4: 192.168.1.96 – 192.168.1.127
• Subnet 5: 192.168.1.128 – 192.168.1.159
• Subnet 6: 192.168.1.160 – 192.168.1.191
• Subnet 7: 192.168.1.192 – 192.168.1.223
• Subnet 8: 192.168.1.224 – 192.168.1.255

For each subnet, select an appropriate address range for network devices, ensuring no overlap with other subnets. For example, assign 192.168.1.1-192.168.1.30 to devices on the first subnet.

Verify the configuration by testing network connectivity using tools like `ping`. Ensure that each device has an IP address within the designated subnet range and can communicate with devices on other subnets if routing is set up correctly.

Common Misconceptions in Routing and Switching Concepts

One common misunderstanding is the idea that routers always forward packets based solely on the destination IP address. In reality, routers use routing tables to determine the best path, and they consider various metrics like hop count, link cost, and network topology.

Another misconception is that static routes are always more reliable than dynamic ones. Static routes require manual configuration and are prone to errors, while dynamic routing protocols can adjust to network changes and provide better scalability and fault tolerance in larger networks.

Some believe that switches only operate at Layer 2, handling only MAC addresses. However, modern switches, especially Layer 3 switches, can perform routing functions, making decisions based on both MAC and IP addresses, which allows for routing between VLANs.

A frequent confusion arises regarding IP address classes and subnetting. Many assume that the default subnet mask always matches the class of the IP address. However, subnetting allows for flexible address allocation regardless of the IP class, using custom subnet masks.

Another common mistake is the assumption that a router will always route traffic between different subnets automatically. In fact, routers need to be explicitly configured to route between networks, and without proper routing protocols or static routes, devices on different subnets may not communicate.

Some students also think that VLANs are only useful for segmenting broadcast traffic. While VLANs help with traffic segmentation, they also improve security by isolating sensitive data and reducing congestion, as well as optimizing network performance by logically grouping devices.

Finally, a misunderstanding involves the role of DHCP in network configuration. Many think that DHCP only assigns IP addresses, but it also provides critical network configuration settings like default gateways, DNS servers, and domain names, which are essential for proper network functionality.

How to Solve IP Addressing Problems in Exam Scenarios

Start by analyzing the given IP address and subnet mask. Use the subnet mask to determine the network and broadcast addresses, as well as the available host range. Divide the address into network and host portions based on the classful subnetting rules or CIDR notation.

For problems involving subnetting, break down the required number of subnets and calculate the new subnet mask. Convert the given IP address into binary form and apply the new subnet mask to determine the subnet range and valid host addresses.

If you’re tasked with determining the appropriate IP address for a device, first ensure it falls within the valid host range of the subnet. Check that the device IP does not fall on the network or broadcast address.

For problems involving VLANs, ensure you identify the correct VLAN ID and assign IP addresses accordingly. Each VLAN should have a unique network, and the router must be configured to route between them if needed.

In scenarios where you’re asked to configure a gateway, verify that the gateway IP address belongs to the same subnet as the device. Typically, the gateway IP is the first usable IP in the subnet, but this can vary depending on the network design.

When given a range of IP addresses, make sure to identify the subnet mask that matches the required number of hosts. You can calculate the subnet size by considering the number of required hosts and then determining how many bits are needed for the subnet mask.

Finally, double-check all IP assignments and ensure no overlap in network addresses. Pay special attention to whether you need to perform address aggregation or whether a specific range of IPs needs to be excluded due to network policies.

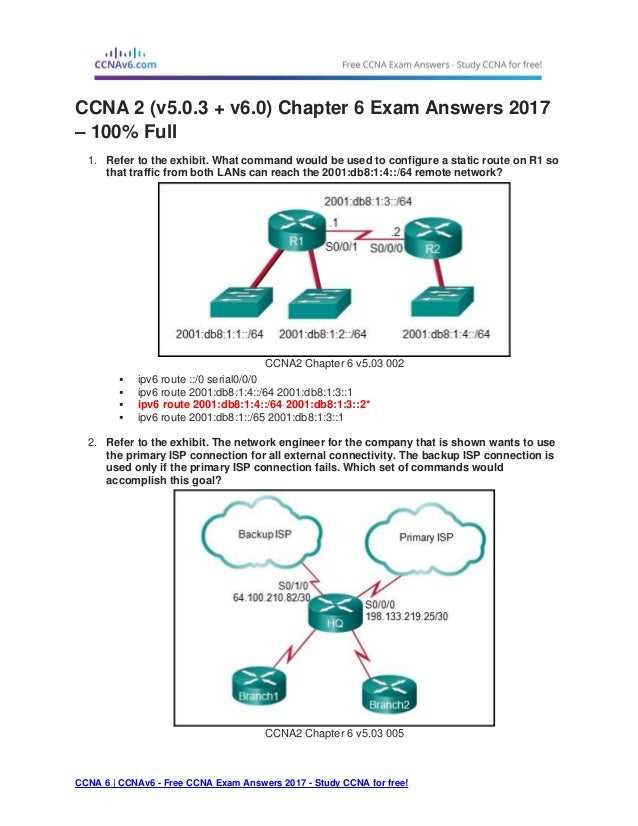

Step-by-Step Process for Configuring Static Routes

1. Access the router’s command-line interface (CLI) using a console connection or remote access (SSH, telnet).

2. Enter global configuration mode by typing:

configure terminal

3. To add a static route, use the following syntax:

ip route

4. For example, if you want to add a route to network 192.168.2.0 with a subnet mask of 255.255.255.0 and the next hop IP address of 192.168.1.1, the command would be:

ip route 192.168.2.0 255.255.255.0 192.168.1.1

5. If the route points to a specific exit interface rather than a next-hop IP address, use the exit interface instead:

ip route

6. To verify that the static route has been added, use the show ip route command to display the routing table:

show ip route

7. If the route is listed correctly, the configuration is complete. If not, recheck the destination network, subnet mask, and next-hop address or exit interface.

8. Save the configuration to ensure the static route is persistent across reboots:

write memory

9. Test the route by performing a ping or traceroute to a destination within the newly configured network to confirm connectivity.

By following these steps, you can efficiently configure static routes to ensure proper traffic flow between networks.

Understanding OSPF and How It’s Tested in Chapter 3

OSPF is a dynamic routing protocol that is frequently covered in networking assessments. To configure OSPF, start by enabling it on the router with the following command:

router ospf

After enabling OSPF, define the network ranges that will participate in OSPF. Use the network command to assign IP addresses to OSPF areas:

network   area

In this context, wildcard-mask is the inverse of the subnet mask, and area-id refers to the OSPF area number. For example:

network 192.168.1.0 0.0.0.255 area 0

Once OSPF is enabled and networks are specified, OSPF will begin exchanging routing information with other routers in the same area.

In assessments, OSPF behavior is often tested by configuring and verifying OSPF networks, adjusting OSPF priorities, and troubleshooting route propagation issues. To test OSPF, the following commands can be used:

• show ip ospf neighbor – Displays OSPF neighbor relationships.
• show ip ospf interface – Displays OSPF interface information.
• show ip route ospf – Displays the OSPF-learned routes in the routing table.

When testing OSPF, check for proper adjacency formation and the correct OSPF routes in the routing table. If routes are missing, verify network statements and OSPF area configurations.

Finally, ensure that OSPF routers are in the correct OSPF area. OSPF area mismatches can result in route propagation failures, which may appear in testing scenarios.

Subnetting Practice Questions and Solutions Explained

To subnet a given IP address, first identify the subnet mask and determine the number of required subnets or hosts. Here is an example question:

Question: Given the network 192.168.1.0/24, subnet it into 4 subnets.

Solution: Start by calculating the new subnet mask. Since we need 4 subnets, we need 2 additional bits (because 2² = 4). The new subnet mask will be /26.

Here’s the breakdown:

• Original subnet mask: 255.255.255.0 (/24)
• New subnet mask: 255.255.255.192 (/26)

Now, we can calculate the subnets:

• 192.168.1.0/26
• 192.168.1.64/26
• 192.168.1.128/26
• 192.168.1.192/26

Each subnet will have 62 usable host IPs (2⁶ – 2 = 62, since 2 addresses are reserved for network and broadcast addresses).

Question: How many usable host IPs are there in the subnet 192.168.1.0/26?

Solution: The subnet mask of /26 leaves 6 bits for host addresses. The number of usable hosts is calculated by 2⁶ – 2 = 62 usable hosts per subnet.

Remember to always subtract 2 for the network and broadcast addresses, which are not assigned to hosts.

These steps will guide you in solving subnetting problems. Practice with different CIDR values and subnetting requirements to become proficient at quickly determining subnet masks and usable host ranges.

How to Interpret and Troubleshoot Routing Table Outputs

To troubleshoot and interpret routing table outputs, start by understanding the key components listed in the routing table. These include network destinations, subnet masks, next-hop addresses, and the routing protocol used. The following steps will help break down and diagnose routing table entries:

1. Identify the Routing Protocol

Look for the routing protocol listed in the routing table (e.g., RIP, OSPF, EIGRP). If the protocol shows a “C” (connected) or “S” (static), it means those routes are directly connected or manually configured. Routing protocols like “D” (EIGRP), “O” (OSPF), and “R” (RIP) will show up for dynamic routes.

2. Check the Destination Network

Ensure the destination network is correctly listed. If there is no entry for a particular destination network, the route may be missing or misconfigured, leading to an unreachable network.

3. Analyze the Next Hop

The “Next Hop” field shows the IP address of the next router to forward the packet. If this address is incorrect or unreachable, packets will be dropped. If there’s a “*” next to the next-hop IP, it indicates that the route is directly connected.

4. Verify the Subnet Mask

Check the subnet mask to ensure it aligns with the network. A misconfigured subnet mask could cause a routing issue where the router incorrectly determines the destination network.

5. Look for Administrative Distance

Administrative Distance (AD) helps the router choose between multiple routes to the same destination. Lower AD values are preferred. If there are multiple routes, verify that the most reliable route is being selected by comparing the AD values of different protocols.

6. Troubleshoot Missing Routes

If a destination network is not in the routing table, perform the following:

• Check if the route is directly connected (use show ip interface brief to verify interfaces).
• If the route is static, confirm the configuration with show running-config or show ip route static.
• For dynamic routing, verify protocol configuration (e.g., show ip ospf neighbor for OSPF).

7. Troubleshoot Route Flaps

Route flapping occurs when a route repeatedly goes up and down. This can result in instability. Use the show ip route command to identify flapping routes. Look for routing protocol logs to determine if network instability or misconfiguration is causing this issue.

8. Look for Routing Loops

Routing loops occur when a packet is forwarded in a circular path. Check for any “inconsistent” or redundant routes in the table. This could happen if routing protocols are misconfigured, or there are multiple paths to the same destination.

By carefully analyzing each component in the routing table, you can efficiently troubleshoot network routing issues and confirm proper configuration.

Detailed Walkthrough of ACL Configuration Tasks

To configure an ACL (Access Control List), follow these steps:

1. Define the ACL Type

Determine if you need a standard or extended ACL. Standard ACLs filter based on source IP address, while extended ACLs can filter based on source and destination IP, protocol type, and port number. For most granular control, use extended ACLs.

2. Enter Global Configuration Mode

Access the router or switch’s global configuration mode using the following command:

Router# configure terminal

3. Create the ACL

For a standard ACL, use the following syntax:

Router(config)# access-list access-list-number permit|deny source-ip [wildcard-mask]

For an extended ACL, use:

Router(config)# access-list access-list-number permit|deny protocol source-ip wildcard-mask destination-ip [port]

Example of a standard ACL:

Router(config)# access-list 10 permit 192.168.1.0 0.0.0.255

This allows all traffic from the 192.168.1.0 network.

Example of an extended ACL:

Router(config)# access-list 100 permit tcp 192.168.1.10 0.0.0.0 192.168.2.20 0.0.0.0 eq 80

This permits TCP traffic from 192.168.1.10 to 192.168.2.20 on port 80 (HTTP).

4. Apply the ACL to an Interface

After creating the ACL, apply it to an interface. Decide if you want to apply the ACL inbound (for traffic entering the interface) or outbound (for traffic leaving the interface). Use the following command:

Router(config)# interface interface-id

Router(config-if)# ip access-group access-list-number in|out

Example:

Router(config-if)# ip access-group 100 in

This applies the ACL 100 to inbound traffic on the interface.

5. Verify the ACL Configuration

To check that the ACL is applied correctly, use the following commands:

• Router# show access-lists – Displays all ACLs on the router.
• Router# show ip interface – Shows which ACLs are applied to which interfaces.
• Router# show ip access-lists – Displays detailed ACL information.

6. Edit or Remove an ACL

If you need to modify or delete an ACL, use the following commands:

• Router(config)# no access-list access-list-number – Removes the ACL.
• Router(config)# access-list access-list-number permit|deny new-conditions – Modifies an existing ACL entry.

7. Test the ACL

Test the ACL to ensure it is blocking or permitting traffic as intended. Use ping, telnet, or other network tools to verify the rules. You can also monitor the ACL counters with show access-lists to see how many packets are matching each rule.

Follow these steps carefully to configure, apply, and troubleshoot ACLs effectively on your network devices.

Reviewing Important Command Syntax for Network Configuration

For proper network configuration, understanding command syntax is key. Here are some important commands to know:

1. Accessing Global Configuration Mode

Use the following to enter global configuration mode:

Router# configure terminal

2. Configuring an IP Address on an Interface

To assign an IP address to an interface:

Router(config)# interface interface-name

Router(config-if)# ip address ip-address subnet-mask

3. Enabling an Interface

Enable the interface after configuring it:

Router(config-if)# no shutdown

4. Creating and Applying an ACL

For creating a standard ACL:

Router(config)# access-list acl-number permit|deny source-ip wildcard-mask

To apply the ACL to an interface:

Router(config-if)# ip access-group acl-number in|out

5. Configuring Routing

For setting a static route:

Router(config)# ip route destination-network subnet-mask next-hop-address

6. Viewing Interface Status

To check the status of an interface:

Router# show ip interface brief

7. Verifying Routing Table

To display the routing table:

Router# show ip route

For more details on command syntax, visit Cisco’s official documentation at Cisco Docs.

How to Identify Common Errors in Network Simulation Exercises

Common errors in network simulations can stem from configuration mistakes, misinterpretations of requirements, or overlooked details. Here are key points to check:

1. Incorrect IP Addressing

• Ensure that all devices have correct IP addresses and subnet masks.
• Verify that no overlapping IP addresses exist in the same subnet.
• Check routing configurations to ensure proper reachability between subnets.

2. Missing or Incorrect Routing Entries

• Verify static and dynamic routing protocols are configured correctly.
• Check for missing routes that might cause communication failures between networks.
• Ensure next-hop IP addresses and destination networks are accurately entered.

3. Incorrect Interface Status

• Verify interfaces are enabled with the no shutdown command.
• Check the physical connections of cables and interface statuses with show ip interface brief.
• Ensure that the correct interfaces are assigned to VLANs or subnets.

4. Misconfigured Access Control Lists (ACLs)

• Check the ACL for correct syntax, including the correct network addresses and wildcard masks.
• Ensure that the ACL is applied in the correct direction (in or out) on the proper interface.
• Ensure that the order of ACL statements is logical, as ACLs are processed top-to-bottom.

5. DNS and DHCP Issues

• Ensure that DNS servers are configured and reachable.
• Check DHCP configurations, ensuring the correct range of IPs and lease times are set.
• Verify that devices are receiving correct IP settings from DHCP servers.

6. VLAN Configuration Errors

• Verify that VLANs are created and assigned to the correct ports.
• Ensure that trunk links between switches are configured properly with the correct encapsulation type.
• Check inter-VLAN routing configurations to ensure communication between different VLANs.

7. Device-Specific Command Mistakes

• Check the command syntax specific to the device model and IOS version.
• Refer to the device’s manual or documentation for correct command structures.
• Ensure that the correct modes (user EXEC, privileged EXEC, global config, etc.) are used when entering commands.

By following these guidelines, you can efficiently identify and fix common errors in network simulations.
