To evaluate your grasp of electrical principles, begin by mastering the fundamental components: voltage, current, resistance, and Ohm’s Law. Knowing how to measure voltage with a multimeter and identify components in a circuit is essential. Start by practicing with simple circuits, applying Ohm’s Law to calculate unknown values.
Voltage is the potential difference between two points, and it’s measured in volts. Current, measured in amperes, is the flow of charge through a conductor. Resistance, in ohms, impedes this flow. These three elements are interconnected and form the core of many electrical problems.
When given a circuit, always identify the power source and calculate the total resistance. Once you have this information, use Ohm’s Law (V = I * R) to find the voltage or current if it’s not already provided. For resistors in series, add their values directly. For parallel resistors, use the reciprocal formula to find the total resistance.
Remember, safety comes first when working with circuits. Always ensure that the circuit is powered off before making adjustments, and check your equipment regularly to prevent errors or damage.

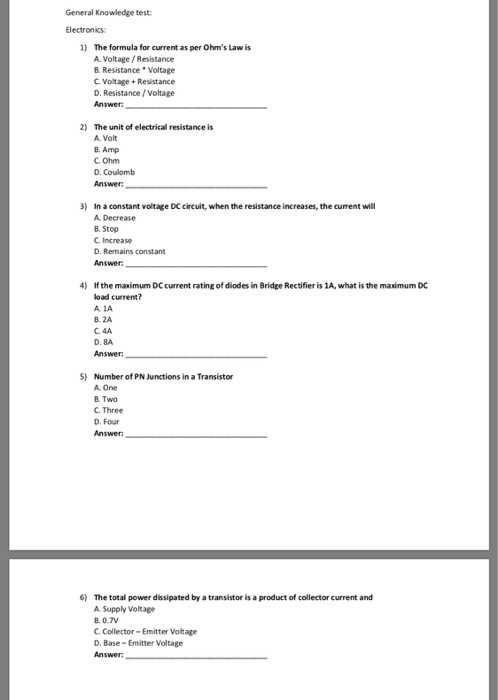

Test on Electrical Components and Circuit Analysis
Check the correct resistance value across a series connection of resistors: The total resistance in a series circuit is the sum of the individual resistances. For example, if you connect a 10Ω and a 20Ω resistor in series, the total resistance will be 30Ω.
Measure voltage across a parallel resistor network: For parallel circuits, the voltage remains constant across each branch. If three resistors (10Ω, 20Ω, and 30Ω) are connected in parallel, the voltage drop across each will be the same as the source voltage.
Identify a capacitor in a circuit: A capacitor stores electrical energy when a voltage is applied across its terminals. It can be tested using a multimeter set to measure capacitance. A typical capacitor may have values like 100µF, 220µF, etc.
Calculate power dissipation: The power dissipated in a resistor is calculated using the formula P = I²R, where I is the current flowing through the resistor, and R is the resistance. For instance, if the current through a 10Ω resistor is 2A, the power dissipation will be P = (2)² * 10 = 40W.
Test a diode’s function: A diode allows current to flow in only one direction. Using a multimeter on the diode setting, check the forward voltage drop, typically around 0.7V for silicon diodes. A reading of zero or a very high resistance indicates a faulty diode.
Determine the current in a circuit: Apply Ohm’s Law (V = IR) to calculate current. For example, if the voltage is 12V and the resistance is 6Ω, the current will be I = 12V / 6Ω = 2A.
Verify transistor operation: A transistor can act as a switch or amplifier. To test a transistor, use a multimeter to check the base-emitter and base-collector junctions. A good transistor will show a voltage drop (typically 0.6-0.7V) when forward biased.
Understand inductors in circuits: Inductors resist changes in current. They store energy in a magnetic field when current flows through them. Measure inductance with an LCR meter to verify its value, commonly marked in microhenries (µH) or millihenries (mH).
Understanding Ohm’s Law: A Practical Approach
Use Ohm’s Law to quickly calculate voltage, current, or resistance in a circuit. The law is expressed as V = I × R, where:
- V stands for voltage (in volts).
- I represents current (in amperes).
- R is resistance (in ohms).
To solve for an unknown, rearrange the formula accordingly:
- For voltage: V = I × R
- For current: I = V / R
- For resistance: R = V / I
Example 1: If a circuit has a current of 2A and resistance of 5Ω, the voltage can be calculated as:
V = 2A × 5Ω = 10V
Example 2: If the voltage is 12V and the resistance is 4Ω, the current is:
I = 12V / 4Ω = 3A
Key points:
- Ohm’s Law holds for linear resistive circuits, where resistance remains constant.
- Ensure units are consistent (volts, amperes, ohms).
- If resistance is variable, the relationship may change; resistors may behave differently under different conditions.
Use a multimeter to measure voltage, current, and resistance directly when testing in real-world circuits. Always double-check connections and use caution when working with live circuits.
How to Measure Voltage Using a Multimeter
Set the multimeter to the correct voltage range. If you’re measuring DC voltage, switch to the “V–” setting; for AC voltage, choose “V~”.
Connect the multimeter probes: the red probe goes to the positive terminal, and the black probe to the negative or ground terminal of the circuit.
Place the probes across the two points where you want to measure the potential difference. For DC voltage, make sure the polarity is correct (positive to positive, negative to negative). For AC, polarity doesn’t matter.
Read the value on the multimeter’s display. If the reading is out of range, adjust the setting to a higher range. For more accuracy, use the lowest possible range that still gives a readable value.
| Multimeter Settings | Application |
|---|---|
| V– (DC Voltage) | Measure direct current voltage |
| V~ (AC Voltage) | Measure alternating current voltage |
Always ensure the probes are properly connected before taking measurements to avoid errors or short circuits. If the reading fluctuates significantly, check the battery or power supply of the circuit.
Common Resistor Color Codes and Their Meanings
Resistors are marked with color bands to indicate their resistance value. Each color corresponds to a specific number. Here’s a guide for decoding those colors:
The first two bands represent significant digits, the third band shows the multiplier, and the fourth band indicates tolerance. For a five-band resistor, the first three bands are significant digits, the fourth band is the multiplier, and the fifth band shows tolerance. Below is the list of colors and their meanings:
Color Code for Digits:
- Black: 0
- Brown: 1
- Red: 2
- Orange: 3
- Yellow: 4
- Green: 5
- Blue: 6
- Violet: 7
- Gray: 8
- White: 9
Color Code for Multipliers:
- Black: x1
- Brown: x10
- Red: x100
- Orange: x1,000
- Yellow: x10,000
- Green: x100,000
- Blue: x1,000,000
- Gold: x0.1
- Silver: x0.01
Tolerance Color Codes:
- Brown: ±1%
- Red: ±2%
- Green: ±0.5%
- Blue: ±0.25%
- Violet: ±0.1%
- Gray: ±0.05%
- Gold: ±5%
- Silver: ±10%
- No Band: ±20%
To calculate the resistance, take the first two digits, multiply by the multiplier, and apply the tolerance for accuracy. For example, a resistor with the color bands red, violet, yellow, and gold represents a value of 270,000 ohms with a tolerance of ±5%.
Calculating Power Dissipation in Electrical Circuits
To calculate power dissipation, use the formula P = I²R, where P is power in watts, I is current in amperes, and R is resistance in ohms. This equation applies to resistive elements such as resistors.
If voltage and resistance are known, apply P = V² / R, where V is the voltage across the resistor. Similarly, if current and voltage are given, use P = VI.
For more complex circuits, break them down into simpler parts. Apply the above formulas to individual components and add power dissipation values for each part. In series circuits, power dissipation sums up across components; in parallel circuits, power across each branch is calculated separately.
Ensure that power ratings for components are not exceeded to avoid overheating or damage. Verify voltage ratings and check current limits to ensure safe operation.
When working with alternating current (AC), use P = VIcos(θ), where θ is the phase angle between voltage and current. This formula accounts for the power factor.
Identifying and Troubleshooting Short Circuits
When a short circuit occurs, it can cause components to overheat, leading to permanent damage or even fires. The first step in diagnosing a short circuit is to disconnect the power supply to the system immediately. This ensures no further damage is done to the circuit or connected parts.
Use a multimeter to test for continuity between two points that should not be connected. A reading of 0 ohms indicates a short. Once identified, inspect the wiring for any visible damage such as melted insulation, exposed conductors, or burnt areas that could be the source of the short.
If no visible damage is present, check the circuit’s layout. Incorrect wiring, poor connections, or solder bridges can cause unintended paths for current to flow. Inspect components closely, particularly those with thin or fragile leads, as they may have fractured or been compromised by heat.
For circuits with complex boards or small components, using an infrared thermometer can help locate hot spots where current is flowing through unintended paths. These areas will appear significantly warmer compared to others.
If the short is on a printed circuit board (PCB), inspect the board under magnification for tiny solder bridges or damaged traces. Use a fine-point soldering iron to correct any mistakes, ensuring that all connections are isolated properly.
Once the issue is identified and corrected, always retest the circuit before reconnecting to power. This prevents further damage and ensures the repair has been successful. Regular maintenance and routine checks can reduce the likelihood of short circuits in the future.
For further guidance, refer to Komodo Electronics for detailed troubleshooting tips.
Testing Capacitors: Methods and Key Indicators
To determine the condition of a capacitor, the first step is to check for visible damage or leakage. If any signs of corrosion or bulging are observed, replace the component. A quick method to verify functionality is by using a multimeter with capacitance measurement capability. The measured value should be within the tolerance specified by the manufacturer. If the reading falls outside this range, the capacitor may be faulty.
Another effective approach is to use an ESR (Equivalent Series Resistance) meter. This tool measures the internal resistance of the capacitor. High ESR values often indicate degradation, even if the capacitance appears normal. A capacitor with high ESR will not perform properly, leading to reduced efficiency in circuits such as power supplies and audio amplifiers.
If a capacitance meter is unavailable, you can use a simple power-on test. Charge the capacitor by applying the rated voltage, then disconnect the power and measure the discharge rate across a known resistor. A slow discharge suggests the capacitor is in good condition, while a rapid discharge points to issues such as leakage or short circuits.
For electrolytic capacitors, check for any leakage of electrolyte. If leakage occurs, it’s a sign that the capacitor has failed and must be replaced. Additionally, applying a voltage slightly higher than the rated voltage for a short duration can help reveal weak capacitors that fail under load.
Always cross-check the capacitor’s polarity when testing polarized types, as reversing the polarity during testing can damage the component.
Working with Transistors: Simple Testing Techniques
Use a multimeter to check the transistor’s junctions. Set the device to diode mode and test between the base and emitter, and base and collector. A working NPN transistor shows a forward voltage of approximately 0.6V-0.7V in both directions, while the reverse readings should show no conduction.
Next, assess the current gain by using a transistor tester or a simple circuit. In this setup, the transistor is placed in a circuit with known resistances to measure the ratio of the output current to the input current. A healthy transistor should produce a predictable current gain within its specified range.
For a quick check of the switching characteristics, connect the transistor in a basic on/off circuit. Feed a small current to the base and observe the output. A properly functioning transistor should transition from full-off to full-on without significant delays or intermediate states.
If you suspect damage, check for short circuits between the collector, base, and emitter. Any resistance reading that suggests continuity across these three terminals points to internal failure.
How to Use a Breadboard for Circuit Prototyping
To begin setting up a circuit on a breadboard, first identify the rows and columns. The vertical columns, typically marked with a ‘+’ and ‘-‘ sign, are for power distribution. Ensure that the power rail is connected to the correct voltage sources, typically labeled as VCC (positive) and GND (ground).
For the components, place them on the horizontal strips. These strips are electrically connected in groups, usually five holes connected in a row. Make sure each component’s pins are inserted into separate rows to avoid unintentional connections between components.
- Start with a power source and connect it to the breadboard’s power rails.
- Insert the ground wire into the GND rail and the positive wire into the VCC rail.
- Place components like resistors, capacitors, and ICs by inserting their leads into the horizontal strips, ensuring that pins don’t touch unintended strips.
- Use jumper wires to connect components from one row to another when necessary. Ensure there are no shorts between rows.
- Check the connections before powering up the circuit to ensure proper configuration.
Once the components are in place, double-check for any unwanted connections. If necessary, use a multimeter to confirm the circuit’s integrity.
After testing, components can be removed easily for modifications or troubleshooting. Adjust components as needed without the need for soldering, making breadboards ideal for quick iterations.
