Practice Questions and Key Concepts for Basic Electrical Exams

Familiarize yourself with the most common topics before tackling this assessment. Focus on understanding key units like volts, amperes, and ohms, as well as how to calculate resistance, power, and current in various circuits.

Make sure to review the different types of circuits you’ll encounter. These may include series, parallel, and combination circuits, each with unique properties that affect voltage, current, and resistance.

When preparing for the multiple-choice section, practice applying formulas to solve for variables. Be comfortable with Ohm’s Law, the power equation, and other essential calculations that will be directly tested.

Don’t overlook the importance of electrical safety. Ensure you’re well-versed in best practices, including grounding, insulation, and handling electrical tools properly to avoid accidents.

Basic Electrical Concepts and Solutions

For this assessment, it’s important to grasp key formulas. Focus on Ohm’s Law: V = I x R, where V is voltage, I is current, and R is resistance. Practicing with examples will help you apply this to different situations.

Remember to study power calculations, P = V x I, as these often appear in various questions. For example, to calculate the power in a circuit with 100 volts and 2 amps, you multiply: P = 100 x 2 = 200W.

Finally, understand the differences between series and parallel circuits. In a series circuit, total resistance is the sum of individual resistances. In parallel circuits, the total resistance is less than any of the individual resistances, and the formula for total resistance is 1/Rt = 1/R1 + 1/R2 + ….

Understanding Electrical Units and Measurements

Familiarize yourself with the key units: Voltage (V), Current (I), Resistance (R), and Power (P). These form the foundation of most calculations. Voltage is measured in volts, current in amperes, resistance in ohms, and power in watts.

The formula V = I x R allows you to calculate voltage. For example, if you know the current (3A) and resistance (4Ω), you can determine the voltage: V = 3 x 4 = 12V.

Next, focus on power. The relationship between power, voltage, and current is expressed as P = V x I. Using the previous example with 12V and 3A: P = 12 x 3 = 36W.

Resistance measurement requires a multimeter. To calculate total resistance in series circuits, simply sum the resistances: R_total = R1 + R2 + …. For parallel circuits, use the reciprocal formula: 1/R_total = 1/R1 + 1/R2 + ….

Common Types of Electrical Circuits and Their Functions

Series circuits connect components in a single path, where the current flows through each element in sequence. If one component fails, the entire circuit is interrupted. This type is commonly used in applications like string lights.

Parallel circuits allow multiple paths for current flow. If one component fails, the rest of the circuit continues to function. This setup is widely used in household wiring, ensuring that lights and appliances work independently of one another.

Combination circuits merge series and parallel elements. A typical example is in complex electrical systems, where certain components are connected in series and others in parallel to balance load and functionality.

Short circuits occur when the current bypasses the intended path, typically due to damaged insulation or wiring. This can cause excessive current flow and lead to equipment damage or fires, requiring immediate attention.

Open circuits are incomplete paths where no current flows, often due to a break in the wiring or a component being turned off. These circuits are used in testing to verify the integrity of the system.

Key Formulas and Calculations for Electrical Exams

Use Ohm’s Law to find any missing value in a circuit: V = I × R, where V is voltage, I is current, and R is resistance.

Power is calculated with P = V × I, where P is power in watts, V is voltage, and I is current. This formula is critical for understanding the energy consumption in circuits.

For series circuits, the total resistance is the sum of individual resistances: R_total = R1 + R2 + … + Rn. For parallel circuits, the reciprocal formula applies: 1 / R_total = 1 / R1 + 1 / R2 + … + 1 / Rn.

Capacitance in series circuits is found by: 1 / C_total = 1 / C1 + 1 / C2 + … + 1 / Cn, and in parallel circuits: C_total = C1 + C2 + … + Cn. These formulas are necessary for managing frequency responses and storing electrical energy.

To determine energy usage over time, use the formula: E = P × t, where E is energy in kilowatt-hours, P is power in kilowatts, and t is time in hours.

Tips for Tackling Multiple-Choice Questions in Electrical Exams

Read each option carefully before selecting your answer. Often, there will be closely related choices that can confuse you. Eliminate clearly incorrect answers first.

Use the process of elimination to narrow down the options. If you’re unsure, try to identify the answer that aligns with core principles or formulas you’ve learned.

Focus on key terms in the question. These terms often point to the correct concept or formula to apply. For example, if the question asks about resistance, focus on Ohm’s Law or resistivity.

Watch for “trap” words like “always,” “never,” or “only.” These terms can often lead you to the wrong choice. Most of the time, electrical concepts have exceptions or variations.

For questions about formulas, recall the relevant equations and how they relate to the variables involved. If unsure, review common relationships like V = I × R or P = V × I to guide your answer.

Manage your time efficiently. Don’t get stuck on one difficult question for too long. If you’re unsure, mark it, move on, and return later with a fresh perspective.

Review your answers if time allows, checking for any missed details or mistakes in your calculations.

Identifying and Troubleshooting Common Electrical Problems

Check the power supply first. If a device won’t power on, test the outlet with another working device. If the outlet doesn’t supply power, inspect the circuit breaker for tripped switches.

If lights flicker or fail to turn on, inspect the bulb and socket for signs of damage or wear. Replace the bulb and secure it in place. If the issue persists, test the switch and wiring connections.

For circuits that trip frequently, check if the connected devices exceed the circuit’s capacity. Move high-power devices to other circuits to balance the load and prevent overloads.

If appliances fail to operate, inspect their cords for wear or fraying. Exposed wires or damaged insulation can cause short circuits. Replace any damaged components before further use.

If you experience shocks when touching appliances, inspect all exposed wiring and ensure proper grounding. Loose or worn-out connections can also cause electrical shocks; tighten and replace as necessary.

For intermittent power, look for loose or corroded connections at junction boxes or outlets. Tighten any loose connections and clean off corrosion to restore reliable service.

If a fuse blows, identify the source of the overload. Once the fuse is replaced, reduce the electrical load on that circuit to avoid another failure.

Understanding Safety Protocols in Electrical Work

Always turn off the power at the breaker box before working on any circuit. Verify the absence of voltage with a non-contact voltage tester before starting any repairs or installations.

Wear rubber-insulated gloves and boots to minimize the risk of electrical shock. Ensure that all tools used are insulated and rated for the voltage level of the circuit you are working on.

Ensure that the work area is dry to prevent accidental shocks. Water is a conductor, so avoid working in wet conditions or with wet hands, as it can increase the risk of a fatal accident.

Use proper lockout/tagout procedures to prevent accidental energizing of the circuit. Lock the breaker box and tag it with a clear warning sign to notify others that work is in progress.

Check for exposed wires or damaged insulation before touching any wires. Always use wire connectors to secure wire ends and prevent them from coming into contact with surfaces that could cause short circuits.

Follow the manufacturer’s instructions and local regulations for installation procedures. Ensure that all connections are secure, and the wiring is properly routed to avoid overheating or electrical fires.

After completing the work, double-check all connections, and ensure that no wires are exposed. Test the system thoroughly before re-energizing the circuit to ensure it operates as intended.

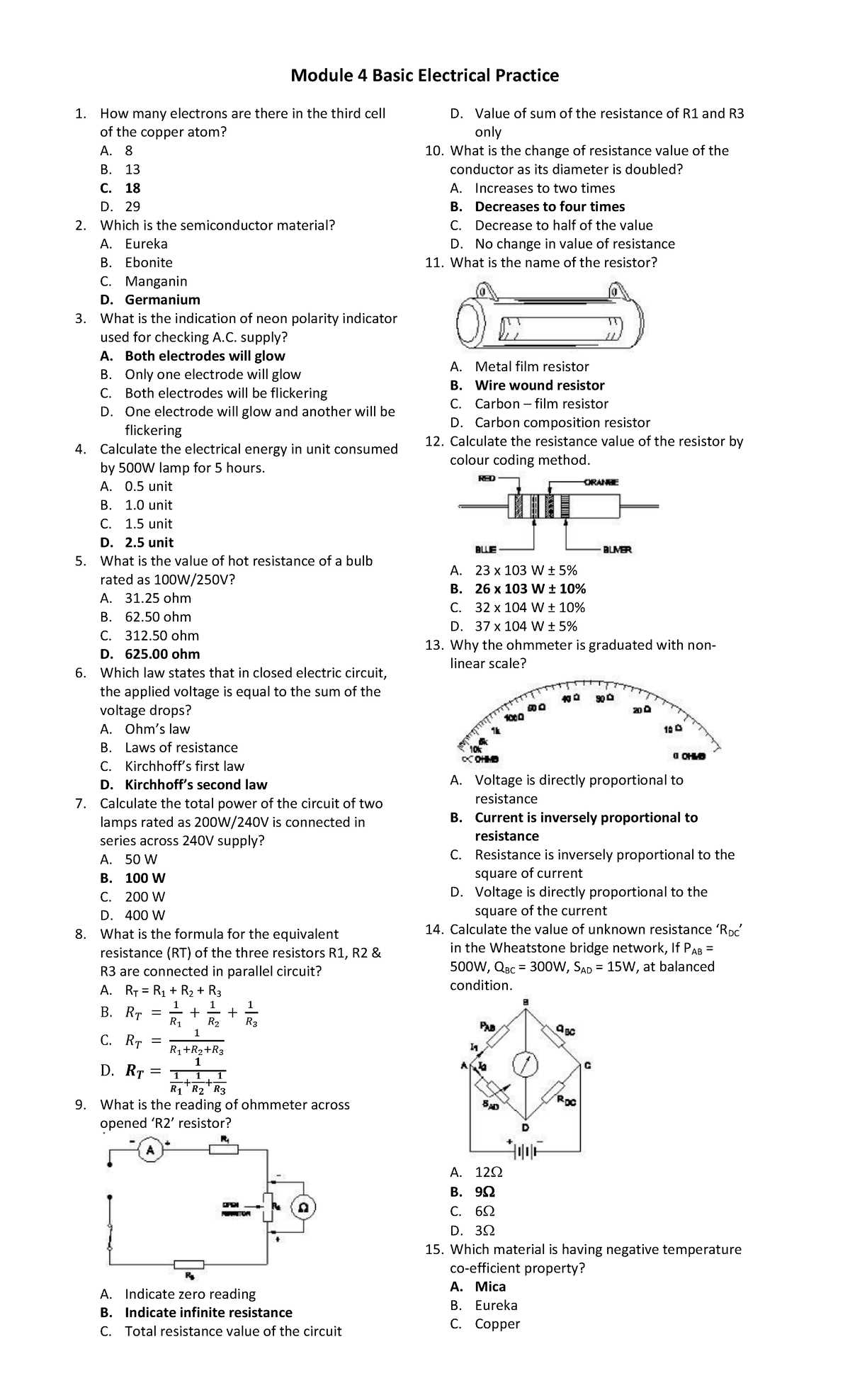

Commonly Asked Theory Questions in Exams

1. What is Ohm’s Law? Ohm’s Law states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance. The formula is I = V / R.

2. What is the difference between AC and DC? Alternating current (AC) reverses direction periodically, while direct current (DC) flows in one constant direction.

3. How is power calculated in a circuit? Power (P) in a circuit can be calculated using the formula P = VI, where V is the voltage and I is the current.

4. What is the role of a fuse in a circuit? A fuse is designed to protect the circuit from excessive current by breaking the connection when the current exceeds a safe level.

5. What is the purpose of a transformer? A transformer changes the voltage level in an alternating current (AC) circuit, either stepping it up or stepping it down.

6. What does the term “impedance” refer to? Impedance is the total opposition that a circuit offers to the flow of alternating current. It combines resistance, inductance, and capacitance.

7. What is the difference between series and parallel circuits? In a series circuit, components are connected end to end, while in a parallel circuit, components are connected across common points, providing multiple paths for current.

8. What is a short circuit? A short circuit occurs when a low-resistance path is created between two conductors, causing a large current to flow and potentially damaging the circuit.

9. What is the function of a capacitor? A capacitor stores electrical energy temporarily and is used to smooth out voltage fluctuations or to store energy in some circuits.

10. What is inductance? Inductance is the property of a coil or inductor to oppose changes in current by creating a magnetic field when current flows through it.

Reviewing Practical Skills for Examinations

1. Always verify that the circuit is completely de-energized before working on it. Use a multimeter to check for voltage before touching any components.

2. Practice reading and interpreting circuit diagrams. Being able to identify components, connections, and current paths is key to troubleshooting and assembly.

3. Focus on accurate wire stripping. Stripping wires to the correct length and ensuring proper insulation helps maintain circuit integrity and prevents accidental short circuits.

4. Master the use of hand tools like pliers, wire cutters, and screwdrivers. Precision and proper handling of these tools are vital when assembling or modifying circuits.

5. Practice proper soldering techniques. Ensure clean and solid solder joints, as poor connections can cause faults or failure in the circuit.

6. Familiarize yourself with different types of connectors and terminals. Properly connecting and securing wires ensures a stable and safe connection.

7. Learn to use the continuity tester and clamp meter effectively to verify wiring and troubleshoot faults in a live system.

8. Ensure you understand the importance of grounding and proper earthing for safety. Improper grounding can lead to electrical shock hazards.

9. Understand the practical applications of circuit breakers and fuses. Be able to identify when and why to use each to protect the circuit from overloads or faults.

10. Regularly test your skills by assembling circuits or simulating faults. Building confidence in these hands-on tasks prepares you for both practical assessments and real-world scenarios.
